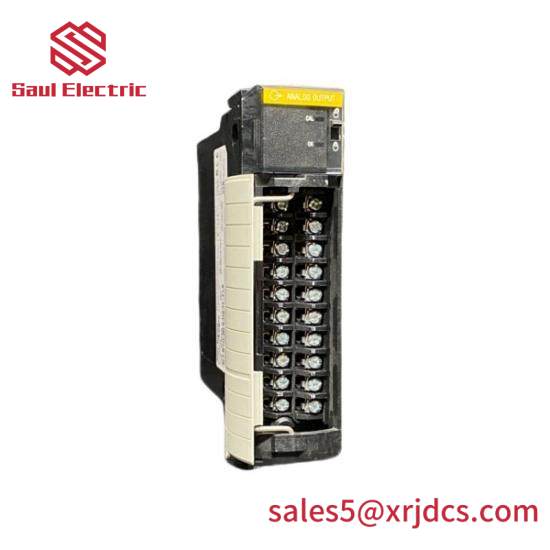

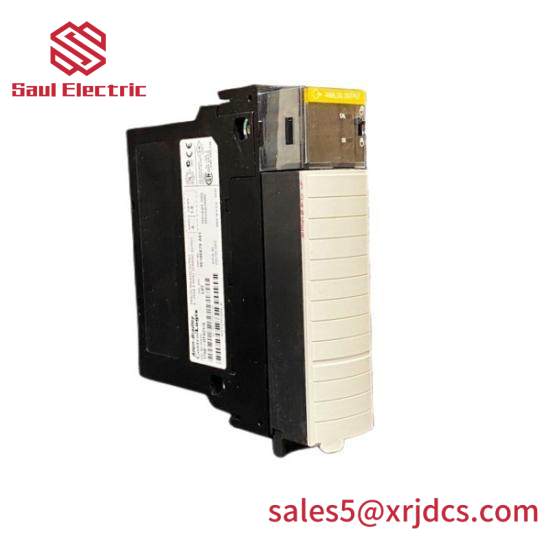

AB 1756-OF6C1 Analog Isolated Output Module – 4-20mA, 6-Point, ControlLogix Series

Model:1756-OF6C1

Type:Analog Isolated Output Module

Channels:6

Signal Range:4-20mA

Power Supply Voltage:DC 24V

Operating Temperature:-20°C to +60°C

Isolation Voltage:500V

Current Consumption:Max 10mA per channel

Communication Interface:ControlLogix Communication

    The AB 1756-OF6C1 module is meticulously engineered for seamless integration into advanced industrial control systems. Its robust design ensures reliable performance under various environmental conditions, making it suitable for use in demanding manufacturing environments.

    Each channel of the module supports 4-20mA current output, enabling precise control over actuators, sensors, and other devices. The internal isolation circuitry provides protection against electrical noise and interference, ensuring stable data transmission.

    Equipped with a wide supply voltage range from 10 to 32V DC, this module offers flexibility in power sourcing. It can handle loads up to 25mA per channel, facilitating the control of a diverse array of industrial devices.

    With an operating temperature range of -20°C to +70°C, the AB 1756-OF6C1 can withstand extreme environmental conditions without compromising its performance. Its IP20 enclosure protects the module from dust and light splashes, enhancing durability and reliability.

    This module is compatible with major communication protocols such as ControlNet, DeviceNet, and EtherNet/IP, ensuring seamless connectivity within complex industrial networks. Additionally, it adheres to international safety and compliance standards, including UL listing, CE marking, and CSA certification.
