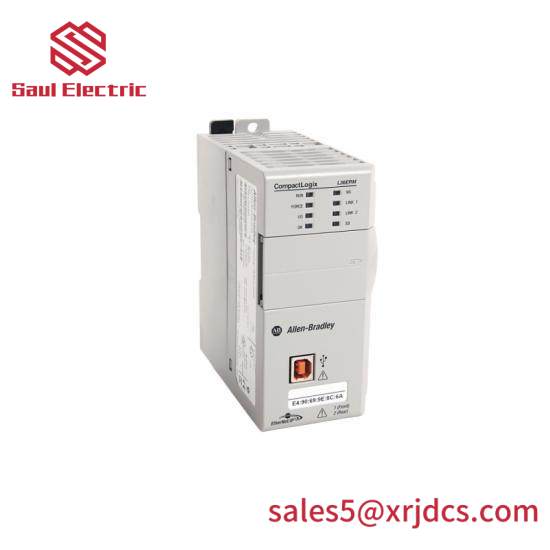

AB 1769-L36ERM Control Module

Processor Speed:20 MHz

Memory:512 KB RAM, 1 MB Flash ROM

Operating Voltage:120/240 VAC, 110/220 VDC

Communication Ports:2 x Ethernet, 2 x RS-485

Input/Output Capacity:16 I/Os (12 DI, 4 DO)

Temperature Range:-20°C to 60°C

Certifications:CE, UL, CSA

    The Allen-Bradley 1769-L36ERM is a cutting-edge Ethernet communication processor module engineered for industrial environments. It seamlessly integrates with existing systems to facilitate efficient data transfer and control functions, enhancing overall system performance.

    With its robust 1 MB memory, the 1769-L36ERM ensures ample storage for critical data and software operations, making it suitable for complex industrial applications. The inclusion of dual Ethernet ports with DLR capability supports both redundant and flexible network configurations, ensuring reliable communication even under varying network conditions.

    Featuring a comprehensive set of I/O channels, this module provides versatile connectivity options for digital and analog signals. Its support for 8 universal analog inputs and outputs enables precise control over various industrial processes, from temperature monitoring to motor speed adjustments.

    Equipped with high-speed counters, the 1769-L36ERM facilitates rapid response times in critical operations, making it ideal for applications requiring high-frequency signal processing. The expansion capacity allows for easy integration of additional I/O modules, ensuring scalability and adaptability to future system needs.

    Designed for reliability and durability, the Allen-Bradley 1769-L36ERM operates on a 24 VDC power supply, ensuring stable performance across a wide range of industrial environments. Its compact size and modular design facilitate quick installation and maintenance, minimizing downtime and maximizing operational efficiency.
