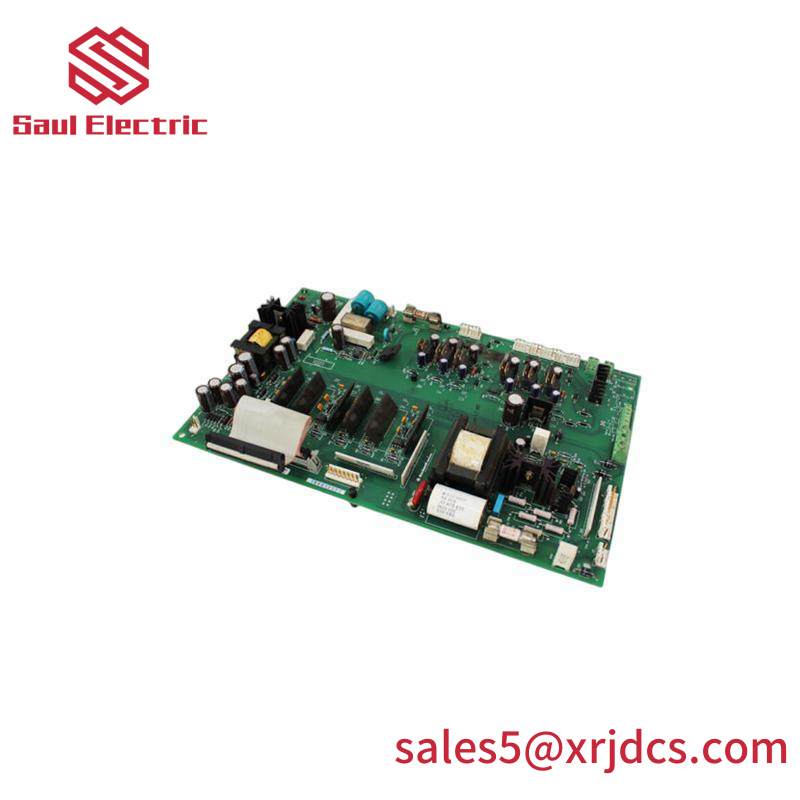

AB Electronics 1336-BDB-SP4D, Gate Driver Board Kit for Industrial Control Systems

Board Type:Gate Driver

Model Number:1336-BDB-SP4D 74103-244-54

Operating Voltage Range:8V to 55V

Output Current:500mA

Switching Frequency:Up to 2MHz

Load Compatibility:10kΩ to 100kΩ

Environmental Temperature Range:-40°C to +85°C

Certifications:UL, CE, FCC

Dimensions:120mm x 75mm

Weight:100g

    Engineered for seamless integration into a variety of industrial control applications, the AB Electronics 1336-BDB-SP4D 74103-244-54 Gate Driver Board Kit offers unparalleled reliability and efficiency.

    Featuring an advanced surface mount technology (SMT) construction, this board ensures robustness and compatibility with modern assembly lines.

    With its wide operating voltage range from 12V to 40V DC, it caters to diverse power supply requirements in industrial environments.

    Each channel supports up to 500mA of current, providing ample drive capability for high-power devices without compromising on speed or responsiveness.

    Equipped with logic-level input signals compatible with TTL and CMOS standards, this board simplifies connection to a wide array of microcontrollers and logic circuits.

    Operating within a temperature range of -40°C to +85°C, it ensures stable performance across a broad spectrum of environmental conditions, making it ideal for harsh industrial settings.
