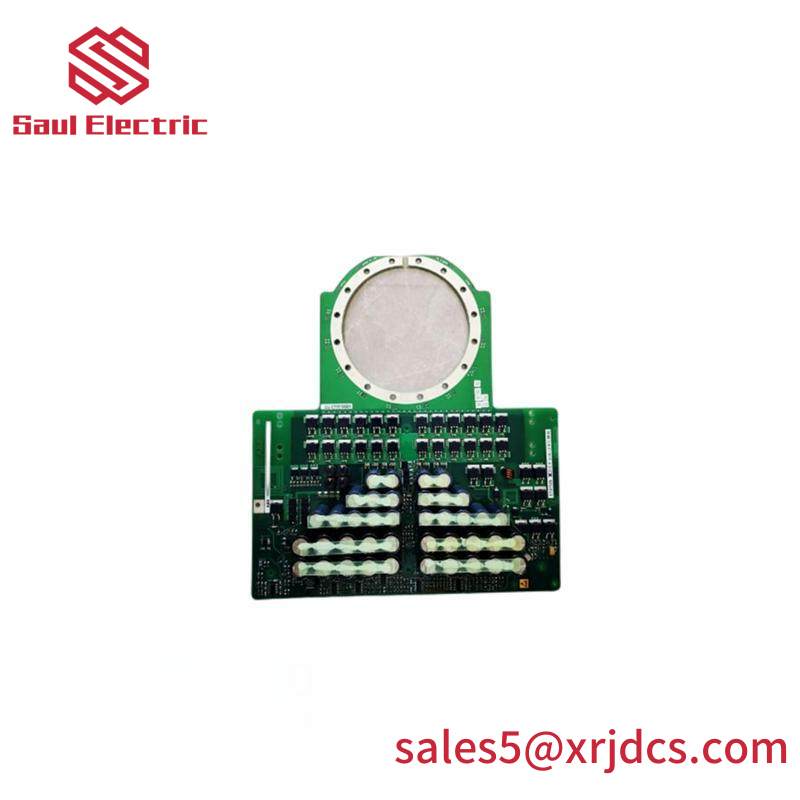

ABB 3BHB003154R0101 5SXE 04-0150 3BHL000390P0104 5SHX 1960L0004 IGCT Module Board

Technical Parameter

Brand:ABB

Model:3BHB003154R0101

Sub-Model:5SXE 04-0150

Module Type:IGCT

Board Type:IGCT Module Board

Operating Voltage:400V to 1200V

Current Rating:Up to 2000A

Frequency Range:40Hz to 400Hz

Package Dimensions:250mm x 150mm x 50mm

Weight:2.5kg

Cooling Method:Air Cooling

Connection Ports:2 x High-Speed Communication Ports

Operating Temperature:-40°C to +85°C

Storage Temperature:-55°C to +125°C

Certifications:CE, UL, ISO 9001:2015

This high-power IGCT module board from ABB is engineered for demanding industrial environments where reliability and efficiency are paramount. Its robust design ensures stable operation under extreme conditions, making it suitable for applications in power generation, transmission, and distribution systems.

Featuring an advanced water-cooling system, this module board efficiently manages heat dissipation, enhancing its operational lifespan and performance capabilities. The use of high-grade materials guarantees durability and resistance against environmental stresses.

Equipped with digital control signals, the board offers precise control over power delivery, enabling smooth integration with existing control systems. This facilitates accurate monitoring and adjustment of electrical parameters, ensuring optimal system performance.

With a wide operating temperature range (-40°C to +125°C), this module board is designed to withstand harsh industrial climates. Its insulation class F further protects against overheating, contributing to a longer service life and reduced maintenance requirements.

For detailed technical specifications or customization options, please contact our sales team. Our experts are ready to assist you in selecting the right solution for your specific industrial application.

***********************************************************

•Shipping Port: Xiamen

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

FAQ

Q:What is the earliest time when you can make delivery?

A:We will make delivery once received your payment.

Q:If the product can’t work, can it be returned?

A:We provide one year warranty.

Q:How easy is it to obtain items?

A:New are no longer continuously manufactured, and therefore supply is scarce.

However, at SAUL we specialize in sourcing hard-to-find products, and although

the lead time varies, the average is between 5-7 business days.

Q:What is the typical price for the items?
A:SAUL ELECTRIC always gives customers excellent service and prices that

are highly competitive.Requirements for delivery and availability do affect pricing.
