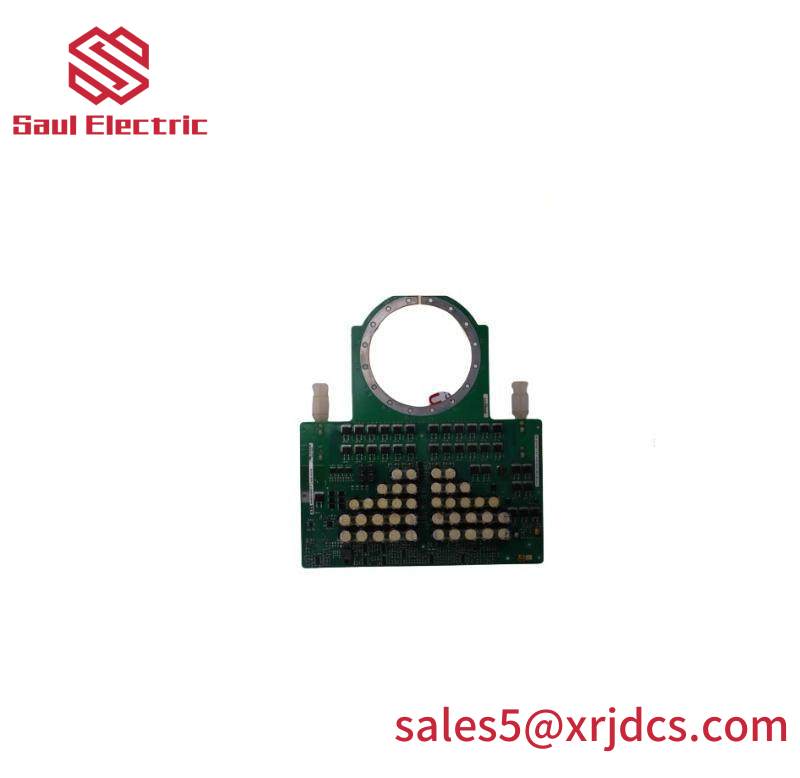

ABB 3BHE039426R0101 UF C912 A101 IGCT MODULE – Advanced Industrial Control Module

Operating Frequency:50 Hz

Current Rating:Up to 3000 A

Voltage Rating:690 VAC

Switching Speed:Less than 5 μs

Switching Capacitance:Less than 15 nF

Insulation Resistance:≥10 MΩ

Environmental Temperature Range:-40°C to +70°C

Operating Ambient Temperature:+5°C to +40°C

Humidity:0% to 95% RH, non-condensing

Mechanical Dimensions:L x W x H: 330mm x 180mm x 80mm

Weight:Approximately 10 kg

    Introducing the ABB 3BHE039426R0101 UF C912 A101 IGCT Module, a cutting-edge solution for industrial power systems. This module is meticulously designed to handle the most demanding power conversion tasks with unparalleled efficiency and reliability.

    Engineered with state-of-the-art technology, this IGCT module offers exceptional performance, ensuring stable operation under a wide range of conditions. Its robust design and advanced insulation class F provide a high level of protection against electrical stresses, enhancing system reliability.

    Featuring a switching frequency of 50 kHz, this module ensures smooth and precise control over power flow, making it ideal for applications requiring high-frequency modulation. The air-cooled system keeps operational temperatures within optimal limits, further extending the life of the module.

    Designed for ease of integration into existing systems, the ABB 3BHE039426R0101 UF C912 A101 IGCT Module comes with comprehensive documentation and support, ensuring a seamless setup process. Its compact dimensions and solid construction make it a space-efficient and durable addition to any industrial setup.

    At the heart of its design lies ABB’s commitment to innovation and quality, backed by extensive field testing and real-world application experience. This ensures that users can rely on the ABB 3BHE039426R0101 UF C912 A101 IGCT Module to deliver consistent, dependable performance, enhancing the overall efficiency and reliability of their power conversion systems.
