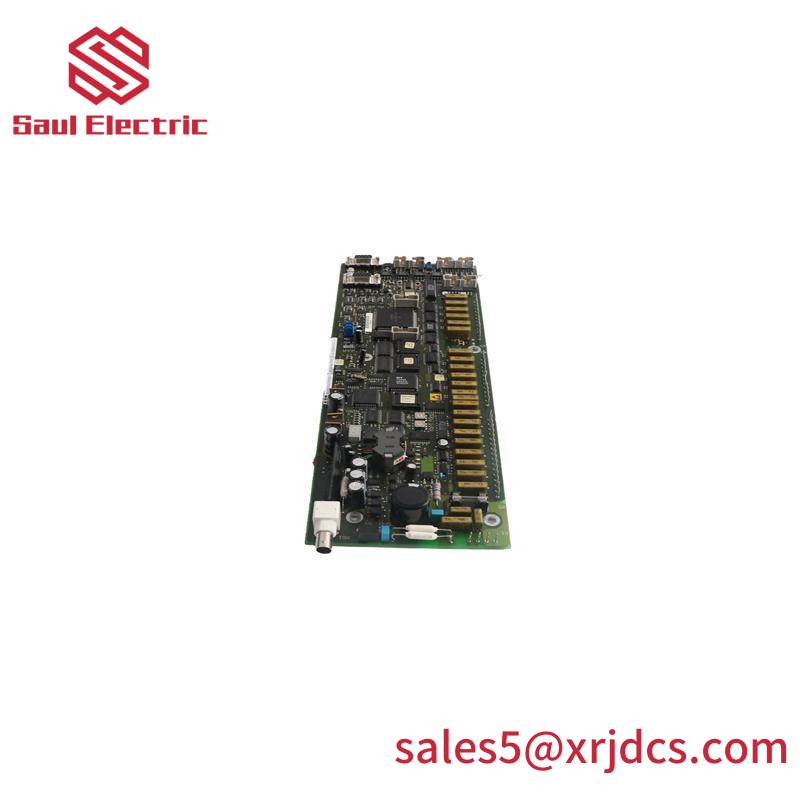

ABB 3BHL000986P0006 Analog Output Board – Precise Control Solutions

Type:Analog Output Module

Model:3BHL000986P0006

Power Supply Voltage:12-24V DC

Output Current:10mA to 100mA

Output Range:0-20mA or 4-20mA

Communication Protocol:Modbus RTU

Temperature Range:-25°C to +60°C

Protection Class:IP20

Number of Outputs:1

Dimensions:146mm x 78mm x 35mm

Weight:0.075kg

Connectors:DIN Rail mountable

    The ABB 3BHL000986P0006 Analog Output Board is engineered to deliver unparalleled precision in industrial automation environments. Its robust design ensures reliable operation within a wide range of temperatures, making it suitable for various manufacturing settings.

    With a versatile operating voltage from 12V to 48V DC, this board can be easily integrated into existing power supply setups without requiring significant modifications. Its ability to provide accurate current outputs ranging from 0 to 20mA enables seamless communication with other devices in the system.

    Equipped with an RS485 Modbus communication interface, the board facilitates efficient data exchange and control commands between different components of an industrial network. This feature is particularly advantageous in complex automation scenarios where precise control over analog signals is essential.

    Offering IP20 enclosure protection, the board safeguards against dust and splashes of water, ensuring durability in challenging industrial conditions. Its compact dimensions make it easy to install in confined spaces, enhancing its flexibility for diverse applications.

    The ABB 3BHL000986P0006 Analog Output Board is a testament to ABB’s commitment to innovation and reliability. It is an ideal choice for manufacturers looking to optimize their control systems with high-quality, precise analog output capabilities.
