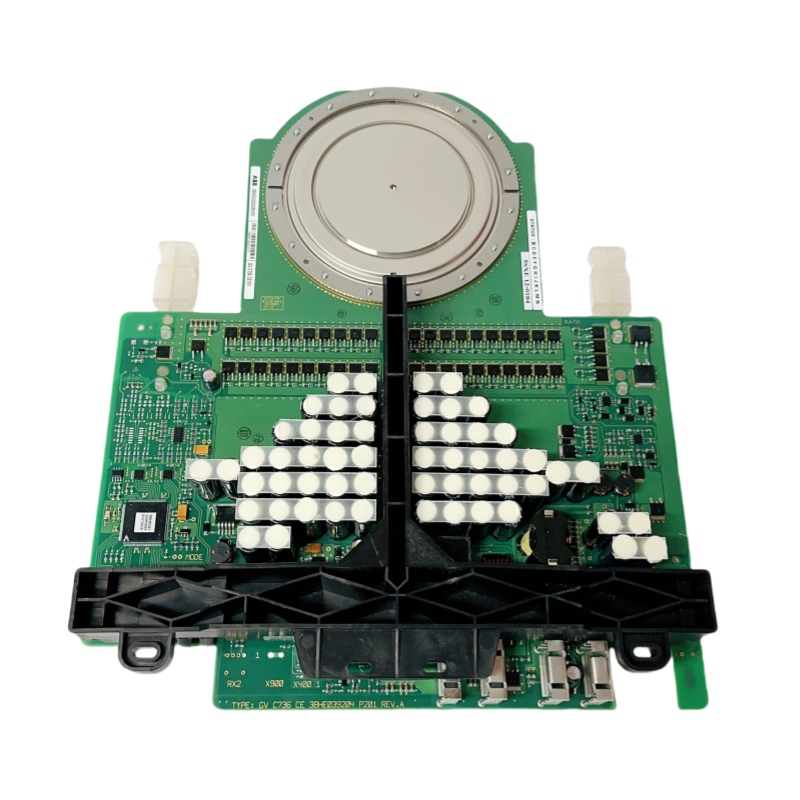

ABB 5SHY3545L0014 / 3BHB013085R0001
| Item | Description | |
|---|---|---|
| Product Type | IGCT (Integrated Gate-Commutated Thyristor) power semiconductor module, commonly used in high-voltage, high-current power electronic conversion systems. | |
| Corresponding Part Numbers | 5SHY3545L0014 and 3BHB013085R0001 refer to the same model under different identifiers — the former is the series/model code, while the latter is the specific part number. | |
| Rated Voltage | 4.5 kV | |
| Rated Current | 3.5 kA | |
| Switching Frequency | Up to approximately 1 kHz | |
| Power Loss | Maximum on-state and switching loss of about 14 kW | |
| Package | TO-247AB; dimensions approx. 263 × 58 × 28 mm; weight about 3.5 kg (≈ 4.3 kg) | |
| Cooling Method | Water-cooled (air-cooled versions also available) | |
| Protection Rating | IP65 / IP67 | |
| Main Applications | 1. High-power inverters, soft starters, and servo drives 2. Industrial equipment requiring high-current speed regulation such as fans, pumps, compressors, conveyors, and machine tools 3. Renewable energy (wind / solar) inverters and power transmission & distribution systems |
|
| Technical Advantages | 1. Combines IGBT-like fast switching with GTO-level high blocking voltage 2. Low on-state voltage drop and low switching loss, improving overall efficiency 3. Integrated gate drive circuitry for easier system integration |
Summary
The ABB 5SHY3545L0014 / 3BHB013085R0001 is a high-performance IGCT power module designed for industrial power conversion systems requiring high voltage (≈ 4.5 kV), large current (≈ 3.5 kA), and fast switching capability. Its water-cooled thermal design, robust TO-247AB package, and IP65/IP67 protection ensure long-term reliable operation in harsh industrial environments. It is widely applied in large-scale inverters, soft starters, and high-power drive systems such as fans and pumps, and serves as one of the core products in ABB’s 5SHY series.
