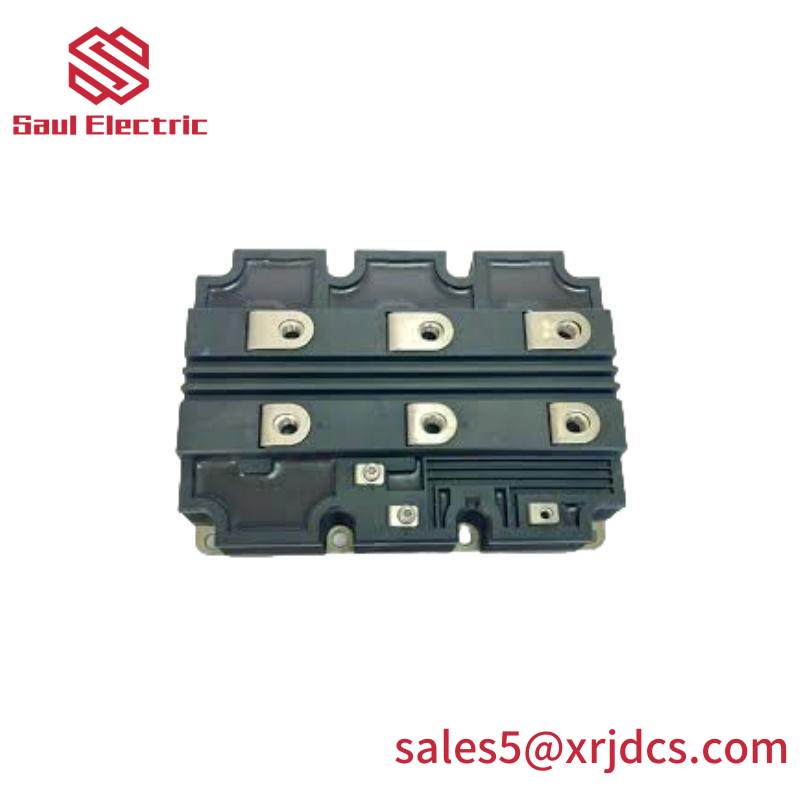

ABB 5SNA 060065G0122 – IGBT Module, High-Performance Power Electronics

Type:IGBT Module

Model:5SNA 060065G0122

Power Rating:600kW

Operating Temperature Range:-40°C to +175°C

Insulation Class:180°C

Electrical Rating:1200V / 600A

Cooling Method:Thermal Pad with Forced Air Cooling

Control Interface:Digital Control Signals

Dimension (LxWxH):160mm x 80mm x 150mm

Weight:2.5kg

    The ABB 5SNA 060065G0122 IGBT module stands out in its class with an innovative design that optimizes power density, ensuring superior heat dissipation and enhanced efficiency. Its robust construction allows it to operate seamlessly across a wide temperature range, making it ideal for harsh industrial environments.

    Crafted from premium-grade materials, this IGBT module boasts exceptional electrical and thermal properties, ensuring reliability even under the most demanding conditions. It features advanced semiconductor technology that significantly reduces switching losses, contributing to lower energy consumption and cost savings.

    Installation and integration are straightforward, thanks to its standard footprint and compatible pinout with other industry-leading modules. This compatibility simplifies the upgrade process for existing systems, reducing downtime and facilitating smooth transitions.

    Safety and maintenance are paramount with the ABB 5SNA 060065G0122 IGBT module. It adheres to the latest safety standards and is equipped with built-in diagnostic features that help monitor the health of the module in real-time, enabling proactive maintenance and minimizing unexpected failures.

    Backed by ABB’s comprehensive technical support and global service network, users can expect unparalleled assistance throughout the product lifecycle. This ensures not only the optimal performance of the IGBT module but also peace of mind in terms of maintenance and troubleshooting.
