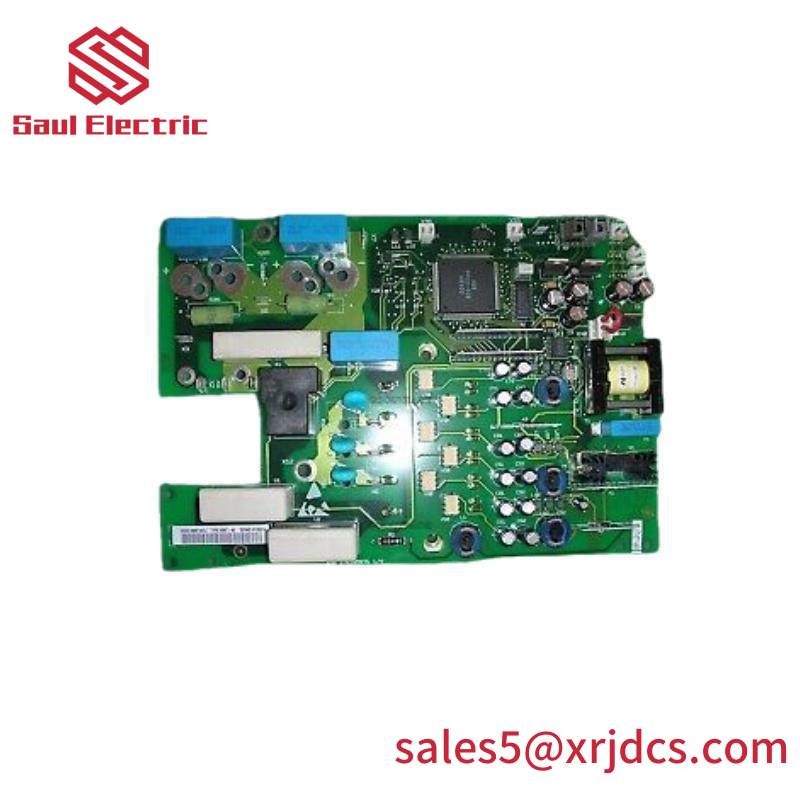

ABB NINT-45C BSM25GD120DN2 IGBT Module – High-Power, Efficient Switching Solutions

Type:IGBT Module

Model Number:NINT-45C BSM25GD120DN2

Maximum Rating Current:120A @ 1700V

Switching Frequency:Up to 50kHz

Cooling Method:Water-cooled

Package Size:25mm x 25mm

Operating Temperature Range:-40°C to +125°C

Insulation Resistance:≥10MΩ at 500VDC

    Engineered for unparalleled performance in high-power applications, the ABB NINT-45C BSM25GD120DN2 IGBT module is a cornerstone in modern industrial automation.

    Featuring advanced semiconductor technology, this module ensures efficient power conversion and minimizes energy loss, making it ideal for sectors requiring high reliability and low maintenance.

    With an operating temperature range from -40°C to +150°C, it is designed to withstand extreme environmental conditions without compromising performance or longevity.

    The use of Thermal Interface Material ensures optimal heat dissipation, enabling continuous operation under heavy load without overheating issues.

    Backed by ABB‘s commitment to quality, the NINT-45C BSM25GD120DN2 offers a failure rate significantly lower than industry standards, providing peace of mind for users in critical manufacturing processes.
