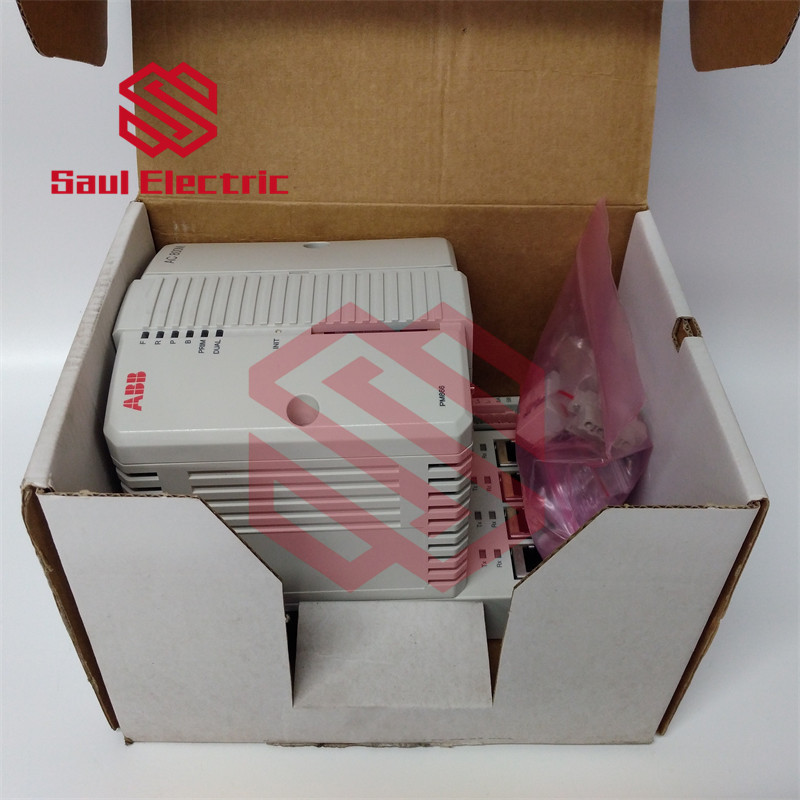

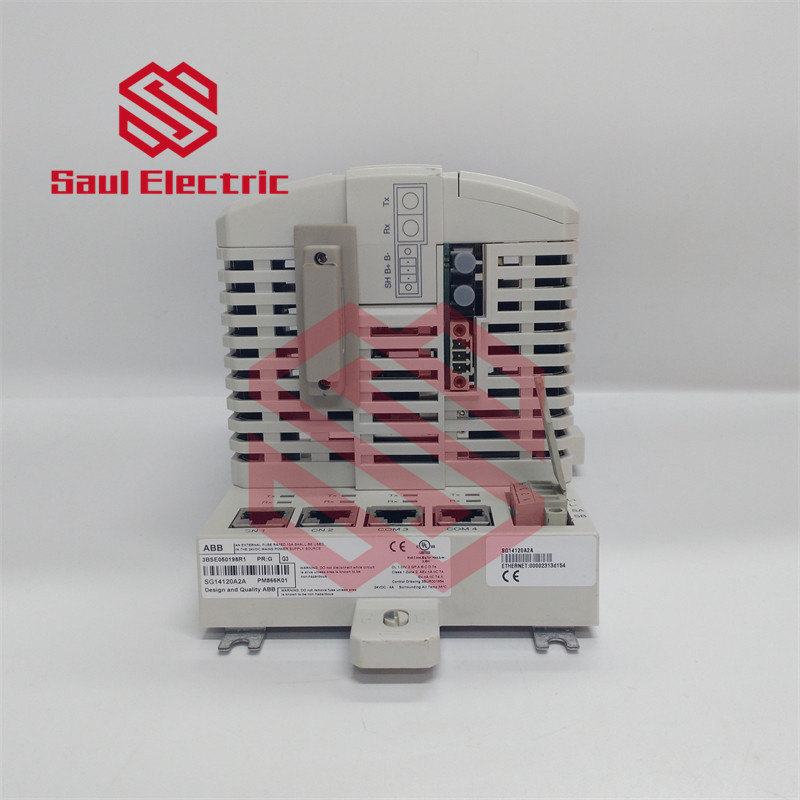

ABB PM866K01 3BSE050198R1 high-performance processor unit

The ABB PM866K01 3BSE050198R1 is a high-performance processor unit specifically designed for industrial automation and is a key component of the ABB AC 800M series control system.

1. Processor and Performance:

• The processor is a dual-core ARM Cortex-A9 with a clock speed of up to 1 GHz, enabling efficient handling of complex control algorithms and large volumes of data.
• It supports various communication protocols, including Ethernet, Modbus TCP/IP, and PROFIBUS, ensuring compatibility with other devices.

     2. Memory and Storage:

• It is equipped with 4 GB of RAM and 8 MB of Flash memory, with support for extended storage options.
• The unit offers a wide range of input/output interfaces, including up to 2048 digital I/O and 512 analog I/O, making it suitable for complex industrial environments.

     3. Operating Conditions and Reliability:

• The operating temperature range is from -40°C to +70°C, making it suitable for harsh industrial environments.
• The design complies with the IEC 61131-3 standard and supports multiple programming languages, ensuring system flexibility and reliability.

     4. Modular Design and Installation:

• The unit supports DIN rail mounting, allowing for quick deployment in industrial settings.
• Its modular design enables users to flexibly configure the processor unit’s parameters and functions based on their specific needs.

     5. Additional Features:

• The processor offers real-time response and deterministic performance, serving as the core component of control systems responsible for executing control logic, data processing, communication management, and system diagnostics. It boasts high reliability and strong scalability, making it ideal for distributed control systems (DCS) and process control applications.

With its powerful processing capabilities, flexible configuration options, and wide range of applications, it is an indispensable core component in modern industrial automation systems.
