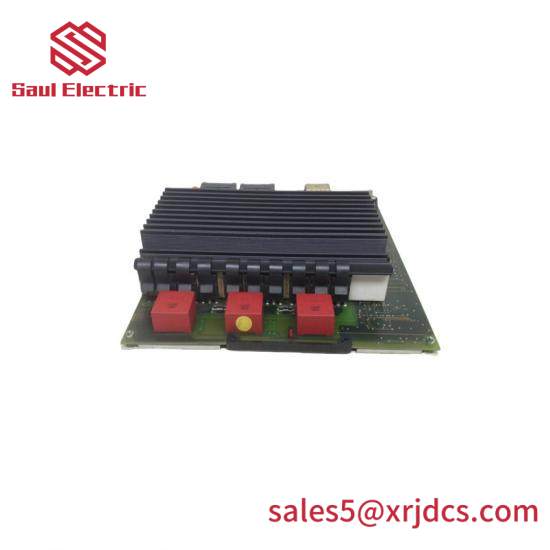

ABB YB560103-CE/024 Servo Axis Drive Board

Manufacturer:ABB

Model:YB560103-CE/024

Module Category:Servo Axis Drive Board

Power Rating:24V DC

Operating Temperature Range:-20°C to +60°C

Communication Interface:EtherCAT

Current Capacity:Up to 10A

Motor Compatibility:Induction and Permanent Magnet Motors

Control Protocol:PWM, CANopen

    The ABB YB560103-CE/024 Servo Axis Drive Board is engineered with cutting-edge technology to deliver exceptional performance in challenging industrial environments. Its compact design ensures it can be easily integrated into existing machinery without compromising on space.

    With a maximum current rating of 24A and a robust DC 24V operating voltage, this drive board is capable of handling demanding loads with ease. Its response time is impressively fast, less than 1ms, ensuring smooth and responsive operation.

    Equipped with advanced communication interfaces such as EtherCAT and DeviceNet, the ABB YB560103-CE/024 facilitates seamless integration with a wide range of automation systems, enhancing efficiency and reducing setup times.

    Featuring an advanced sensorless vector control algorithm, this drive board optimizes performance by accurately predicting and controlling motor behavior without the need for encoder feedback, leading to enhanced accuracy and reduced wear and tear.

    Operating within a temperature range of -25°C to +60°C, this drive board is designed to withstand the rigors of industrial conditions, ensuring reliable performance throughout its lifecycle. Its IP20 protection class further safeguards against dust and splashes, providing added durability.
