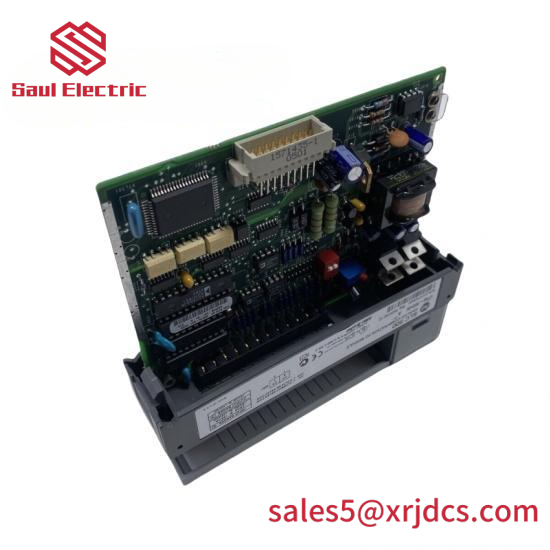

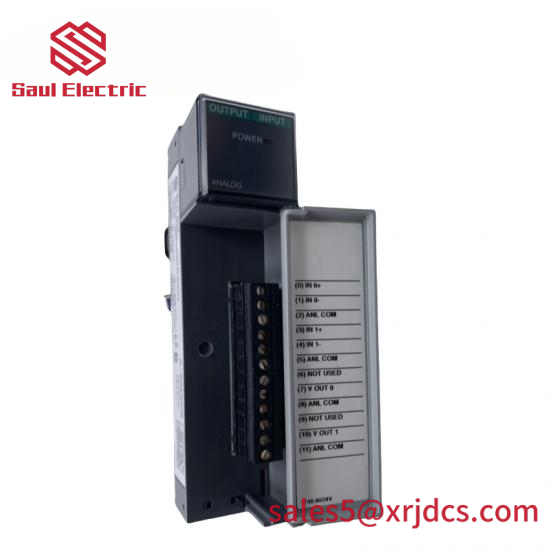

Allen Bradley 1746-NIO4V SLC 500 Analog Input and Output Module

Number of Inputs:2

Number of Outputs:2

Analog Input Range:0 to 20mA, 4 to 20mA

Voltage Output Range:0 to 10V, 0 to 24V

Sampling Rate:250 samples per second

Power Supply Voltage:24VDC

Communication Interface:RS-485

Operating Temperature:-10°C to 55°C

Relative Humidity:5% to 95% non-condensing

Enclosure Type:IP20

Dimensions:126mm x 103mm x 55mm

    The Allen Bradley 1746-NIO4V is designed to deliver high-resolution analog signal conversion and transmission, making it an ideal choice for applications requiring precise control and monitoring.

    This module supports dual input channels, each capable of handling common mode voltages ranging from -20 to +20V, ensuring compatibility with a wide range of industrial sensors.

    For output, the 1746-NIO4V provides two channels that can deliver voltage outputs within a precise range, facilitating accurate control over actuators and other devices in your automation setup.

    With its robust input and output specifications, this module is engineered to withstand overvoltage conditions up to 7.5VAC RMS, enhancing system reliability in challenging environments.

    The Allen Bradley 1746-NIO4V offers a backplane current draw of 55MA, optimizing power consumption and system efficiency, making it a cost-effective solution for your industrial automation needs.
