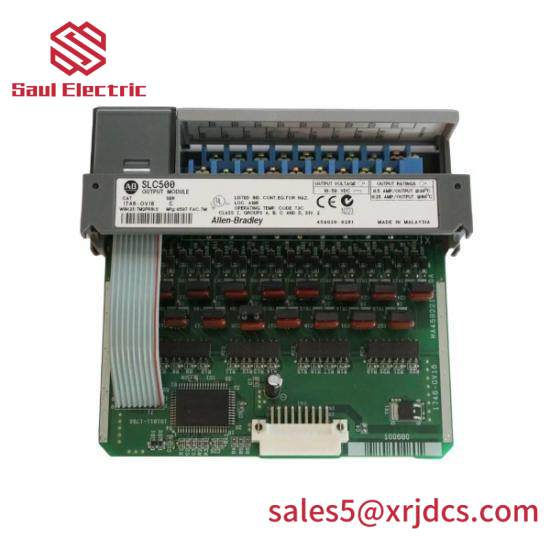

Allen-Bradley 1746-OV16 SLC 500 Discrete Output Module

Product Model:1746-OV16

Type:Discrete Output Module

Manufacturer:Allen-Bradley

Nominal Input Voltage:24VDC

Input Voltage Range:10-50 VDC

Backplane Current Consumption:0.270 A

Voltage Range:10-50 VDC

Sink Outputs:16

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Continuous Current Per Output:0.25 A at 60°C

Continuous Current Per Module:4 A at 60°C

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”,”Processor”:”SLC 500″}

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95%

    The Allen Bradley 1746-OV16 Discrete Output Module is designed for high-performance applications in industrial environments. With sixteen channels of discrete output, this module offers unparalleled reliability and precision. Its robust design ensures long-term durability even in harsh conditions. Each channel supports a wide input voltage range from 10 to 50 volts DC, ensuring compatibility with a variety of devices. The module’s backplane current consumption is optimized for efficiency, drawing just 0.270 amps, while each channel can handle up to 0.25 amps continuously at 60°C. For added safety, the module includes robust isolation features, including communication circuits isolated up to 500 VDC, backplane isolation up to 1500 VAC, and processor compatibility with SLC 500 systems. Operating within a temperature range of 0 to 60°C and humidity levels from 5% to 95%, this module is well-suited for a broad range of industrial settings.
