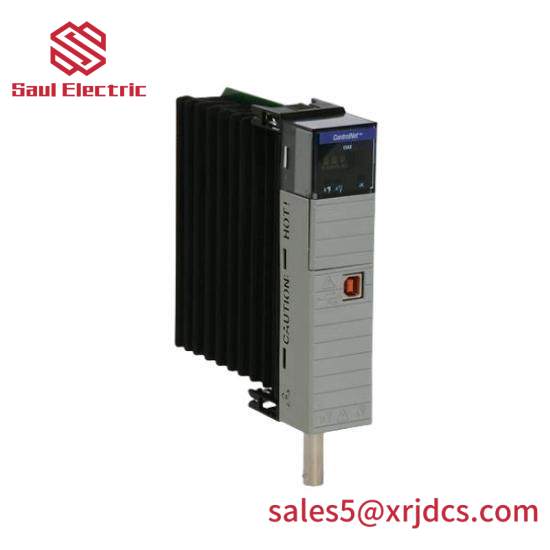

Allen Bradley 1756-CN2RXT ControlNet Redundant Bridge Module – Reliable Industrial Networking Solution

Model Type:Redundant Bridge Module

ControlLogix Communication Module:Yes

Number of Channels:2

Current Rating (Drawn):970 mA at 5.1 VDC, 1.7 mA at 24 VDC

Isolation Level:30 V (Continuous)

Communication Protocols:ControlNet, ControlNet A/B to Backplane

Enclosure Type:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHz, 10 V/M with 200 Hz 50% Pulse 100% AM at 900 MHz

Temperature Rating:0 – 60 °C

Power Dissipation:5.1 W

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface Type:Ethernet, USB Port

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

    Integrating advanced technology, the AB 1756-CN2RXT ControlNet Redundant Bridge Module ensures seamless data transmission within industrial automation systems. This module is equipped with robust redundancy features to prevent single-point failures, guaranteeing continuous operation even under adverse conditions.

    Designed with a high isolation level, it ensures reliable signal integrity, making it ideal for applications where data accuracy and system uptime are critical. The inclusion of a redundant communication pathway allows for fault tolerance, significantly reducing downtime.

    With its open type enclosure and adherence to strict environmental standards, this module can withstand harsh industrial environments, including high humidity and temperature fluctuations. The module’s Ethernet and USB interfaces facilitate easy integration with existing infrastructure, enhancing operational efficiency.

    The AB 1756-CN2RXT is meticulously crafted with high-quality materials to ensure durability and longevity. It is compatible with various connection cables, supporting a wide range of industry protocols and standards. This compatibility makes it a versatile solution for diverse automation projects.

    Incorporating state-of-the-art RFI suppression technology, the module minimizes interference from external sources, ensuring stable data flow and reduced errors. Its comprehensive design addresses the stringent requirements of modern industrial automation, making it an indispensable component for maintaining system reliability and performance.
