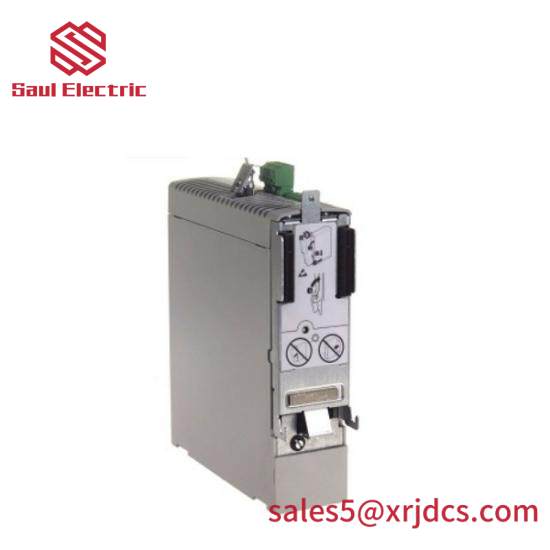

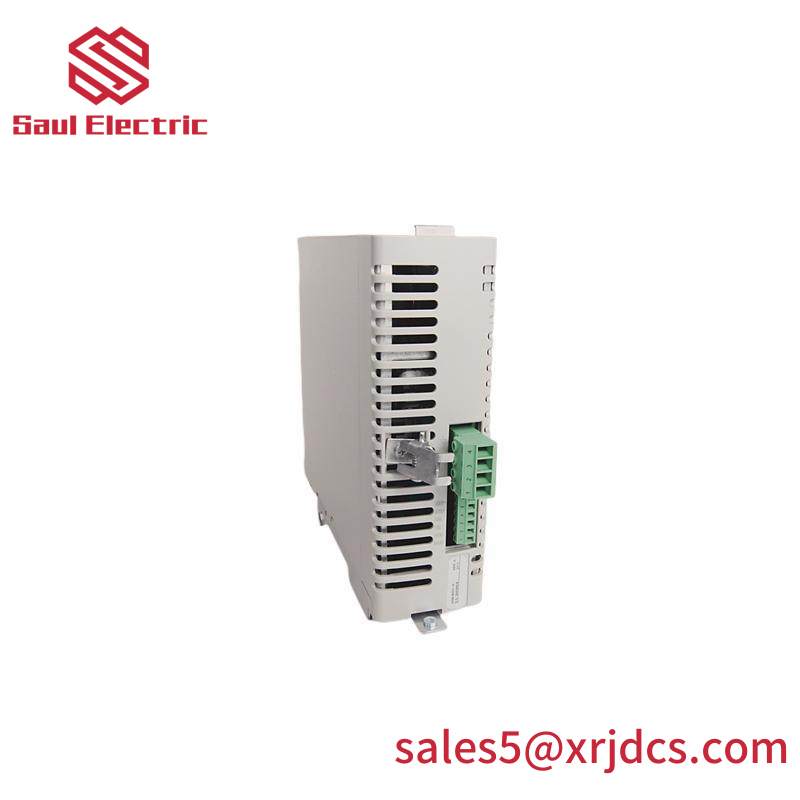

Allen-Bradley 2094-BM01-S Axis Module for Kinetix 6000 Multi-Axis Drive System

Brand:Allen-Bradley

Model:2094-BM01-S

Module Type:Axis Module

Input Voltage:324-528V RMS, 3-phase

Nominal Voltage:360/480V

Nominal Input Voltage:650V DC

Continuous Output Current:6.1 A

Peak Output Current:8.6 A

Continuous Output Power:3.9 kW

Efficiency:98%

Internal Shunt Peak Power:5.6 kW

Internal Shunt Continuous Power:50 W

Power Dissipation:57-126 Watts

Velocity Loop Bandwidth Frequency:500 Hz

Current Loop Bandwidth Frequency:1300 Hz

PWM Frequency:8 kHz

Capacitance:150 μF

Continuous Current (RMS):6.1 A

Continuous Current (0-peak):8.6 A

Internal Shunt Resistor:115 Ω

Heat Dissipation:N/A

Weight:N/A

    The Allen-Bradley 2094-BM01-S is a cutting-edge AC drive module designed for the Kinetix 6000 Multi-Axis Drive System. Engineered for demanding industrial environments, this module ensures optimal performance and reliability. With a robust design, it offers an impressive continuous output power of 3.9 kW and a peak output current of 21.6 Amperes, making it perfect for applications requiring high torque and precision control. Its integrated Safe Torque Off (STO) feature enhances safety, safeguarding operators and equipment from unexpected movements. The module’s advanced diagnostics provide real-time insights into system performance, helping to minimize downtime and maximize productivity. The Allen-Bradley 2094-BM01-S is not just a drive module; it’s a comprehensive solution for industrial automation, designed to meet the stringent demands of modern manufacturing processes.
