B&R 8B0C0320HW00.002-1

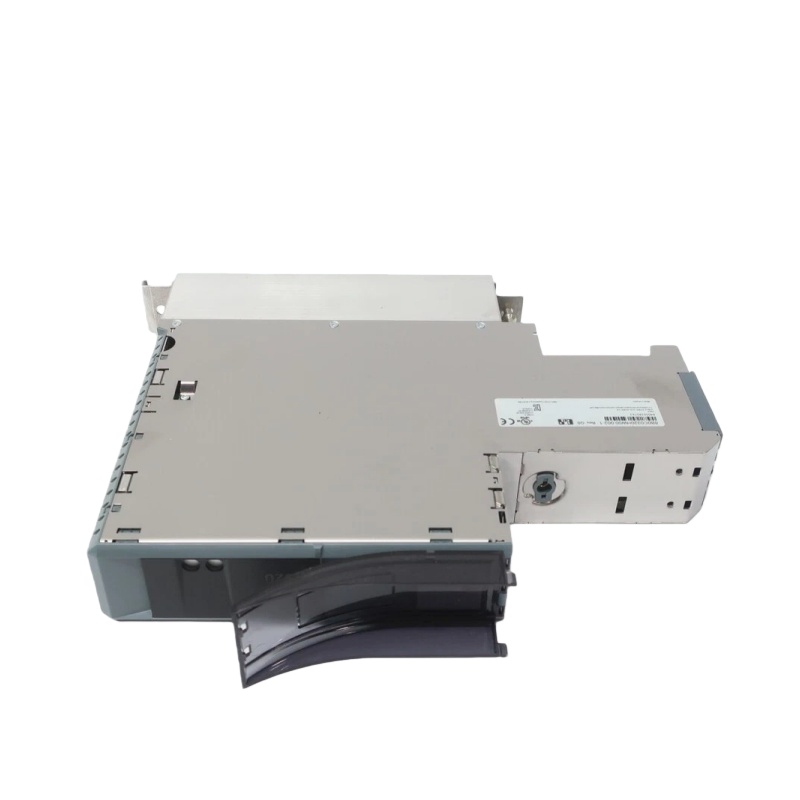

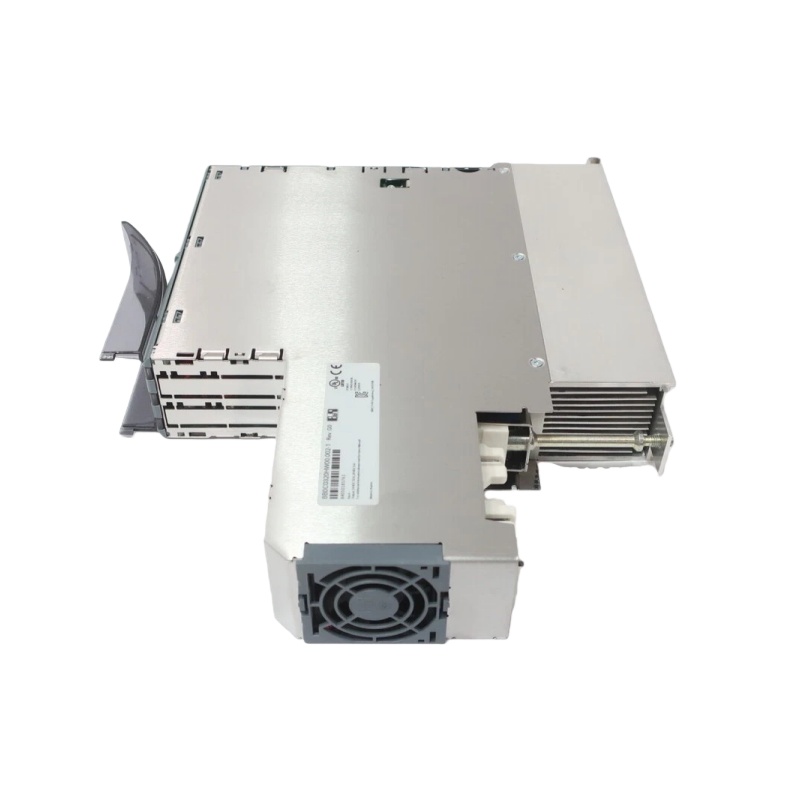

B&R 8B0C0320HW00.002-1 is an ACOPOSmulti Auxiliary Power Supply Module in the industrial automation product portfolio of B&R (Bernecker & Rainer).

B&R 8B0C0320HW00.002-1

Core Specifications and Features

Main Functions:

Auxiliary power supply: Provides a stable 24 V DC auxiliary power for control boards within the ACOPOSmulti system (such as controllers, drives, and I/O modules), ensuring normal operation even in the event of DC bus power loss or supply fluctuations.
High reliability: Integrates multiple protection functions, making it suitable for harsh industrial environments.

Technical Parameters:

DC bus voltage: 750 V DC (DC bus input voltage)
Output power: Up to 800 W continuous power (24 V DC output)
Rated current: 30 A DC (power supply mode) / 32 A DC (normal mode)
Power Factor Correction (PFC): Built-in PFC ensures operation with a high power factor
Dimensions and weight: Width 53 mm, height 317 mm, depth 263 mm; weight approx. 3.2 kg

Environmental Characteristics:

Operating temperature: −25°C to +55°C (depending on the variant; some versions −20°C to +55°C)
Altitude capability: Up to 4000 m
Protection class: IP20 (protective enclosure)

Compatibility:

Accessories: Typically used with dedicated terminal block assemblies (e.g., 8BXS, 8BXS001.0000-00, etc.)
Applications: Primarily designed for B&R ACOPOSmulti inverter systems, but can also be used as a general-purpose auxiliary power supply module for other 750 V DC systems.

Typical Applications

Automated production lines: Supplying power to control systems of CNC machines, packaging machines, conveyors, and similar equipment.
Robotics and machining centers: Ensuring controllers remain in a safe state and maintain position holding during DC bus failures.
Hazardous and high-altitude environments: Thanks to its protection level and wide operating range, it is suitable for special applications such as mining and oilfield installations.

B&R 8B0C0320HW00.002-1

Main Brand:

ABB Allen-Bradley Alstom Bently Emerson Foxboro

GE MOOG Schneider Woodward HIMA Honeywell

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

FAQ

Q: Do you provide a warranty for the goods?

A: Yes, we provide a warranty for all the goods from us.

Q: Could you provide technical support?

A: We’re in this field for more than 12 years. If there’s any problem, please contact us, and we’ll provide suggestions from our engineer to help you solve the problem.

Q: Do you keep goods in stock or only trade?

A: We have a large warehouse for goods. We keep lots of items in stock, so we can promise fast delivery.

Q: Are your goods new and original?

A: Yes, they are new and original.

What is a DCS?

A Distributed Control System (DCS) is a sophisticated, computer-based control system designed to automate, monitor, and manage complex industrial processes. It is widely used in large-scale industrial facilities such as refineries, power plants, chemical plants, and paper mills, where precision, reliability, and scalability are critical.

How Does a DCS Work?

A DCS is composed of several interconnected components that work seamlessly to ensure efficient process control. Here’s a breakdown of its key elements:

Controllers:
These are the “brains” of the system. Controllers receive data from sensors, process it using pre-programmed logic, and send output signals to actuators to maintain optimal process conditions.
Sensors:
Sensors act as the “eyes and ears” of the system, measuring critical physical parameters such as temperature, pressure, flow rate, and level. This real-time data is essential for accurate control.
Actuators:
Actuators are the “muscles” of the system. They execute physical actions based on controller commands, such as opening/closing valves, starting/stopping motors, or adjusting dampers.
Operator Stations:
These serve as the human-machine interface (HMI), allowing operators to monitor the process, adjust setpoints, and troubleshoot issues. Modern DCS systems often feature intuitive graphical interfaces for ease of use.
Communication Network:
The backbone of the DCS, this network connects all components, enabling seamless data exchange and coordination. It ensures that every part of the system works in harmony, even across large industrial sites.

Why is a DCS Important?

Centralized Control with Distributed Execution: A DCS allows for centralized monitoring while distributing control functions across multiple controllers, reducing the risk of system-wide failures.
Scalability: It can easily expand to accommodate growing operational needs.
Reliability: Redundant systems and fail-safes ensure continuous operation, even in critical environments.
Efficiency: Optimizes processes, reduces waste, and improves overall productivity.
