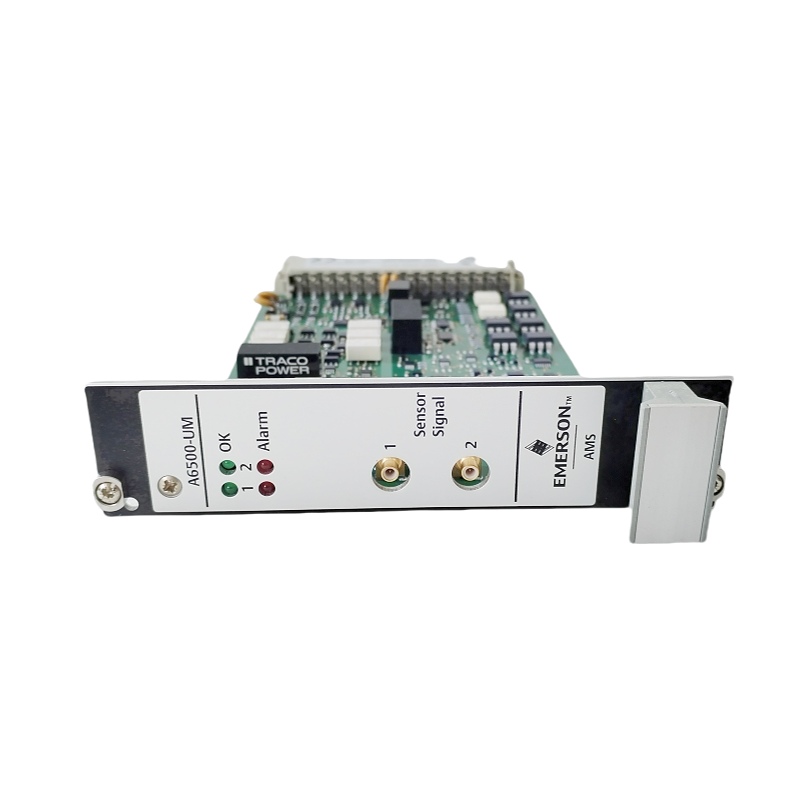

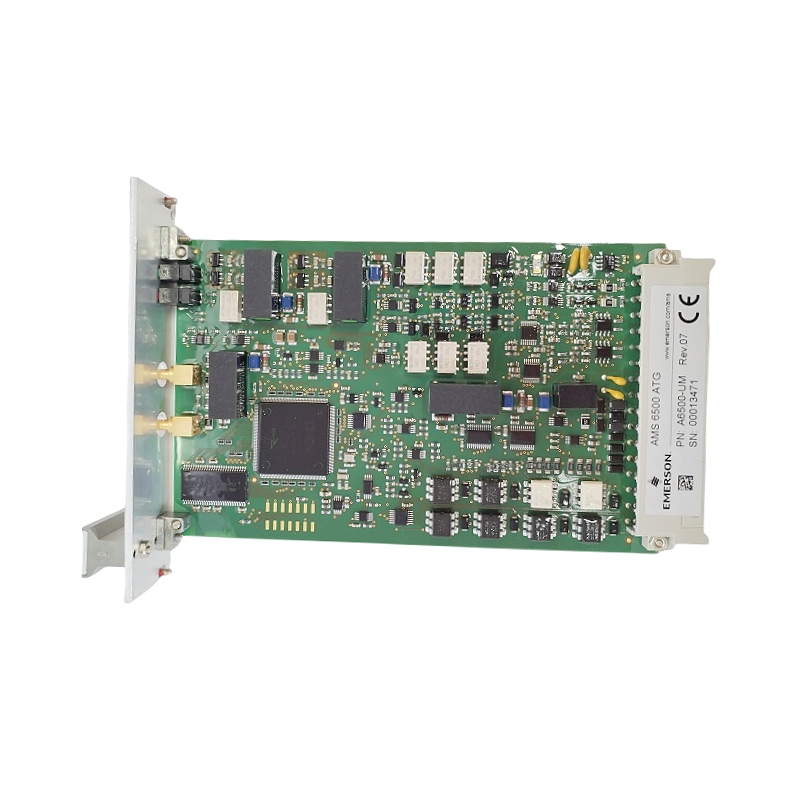

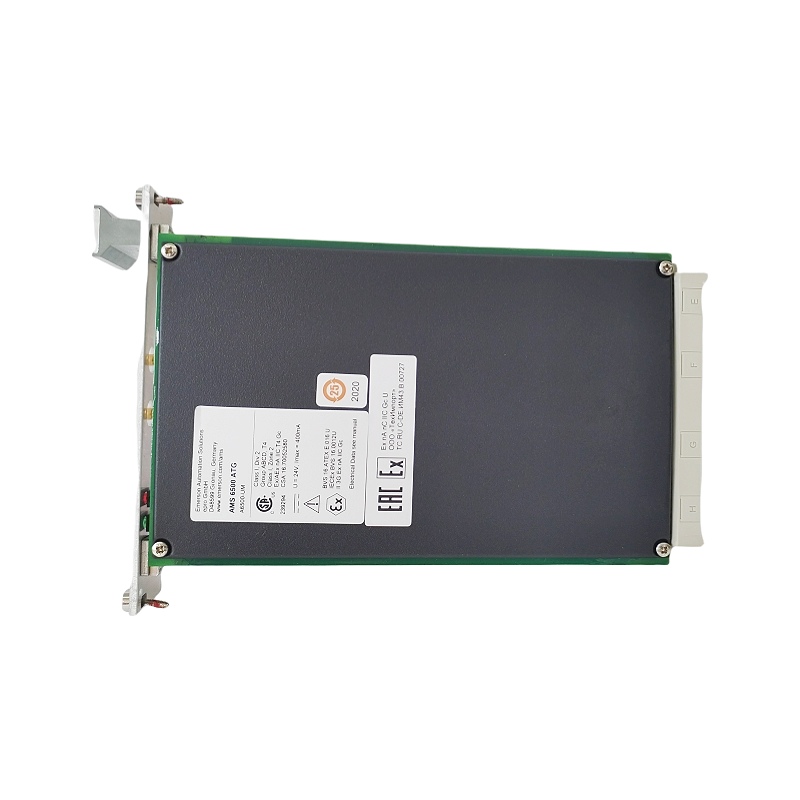

EMERSON A6500-UM Universal Measurement Card Overview

Item | Description

Product Positioning | Core measurement module for the Emerson AMS 6500 ATG machinery protection system. It is used to acquire, process, and output multiple types of sensor signals for shaft vibration, casing vibration, displacement, velocity, and other monitoring tasks.
Input Channels | Two analog input channels that can be configured independently or in combination. Supports various sensors including eddy-current, piezoelectric, low-frequency bearing vibration, Hall-effect, and LVDT (requires the A6500-LC).
Signal Range / Frequency Response | Eddy-current input: –1 V to –22 V; frequency response 0 to 18,750 Hz.
Analog Output | 0/4–20 mA (one output per channel).
Digital I/O | 5 digital inputs; 6 normally-open solid-state relay digital outputs.
Communication Interfaces | Modbus RTU, Modbus TCP/IP; onboard USB interface enables direct communication with a PC/laptop for configuration and real-time display.
Power Supply | 24 V DC, common ground, electrically isolated.
Dimensions / Weight | Approx. 144 × 89 × 35 mm; weight approx. 0.5 kg.
Typical Applications

• Shaft vibration monitoring (motors, pumps, fans, etc.)
• Casing vibration, displacement, and velocity monitoring
• Process variable monitoring (temperature, pressure, flow, level, etc.)
• Fault diagnosis and predictive maintenance
  Key Advantages | High precision, modular design, supports multiple sensor types, easy integration with PLC/DCS systems, built-in intelligent diagnostics.

---

Description

The EMERSON A6500-UM is a universal measurement card designed for industrial automation and process control applications. It converts analog signals from field sensors into standard digital or analog outputs, enabling real-time monitoring and analysis by upper-level systems such as PLCs and DCS platforms. With its Modbus communication compatibility and USB-based configuration interface, the module is easy to install, commission, and maintain. It is widely used in industries such as power generation, petrochemicals, metallurgy, and mining for equipment protection and condition monitoring.
