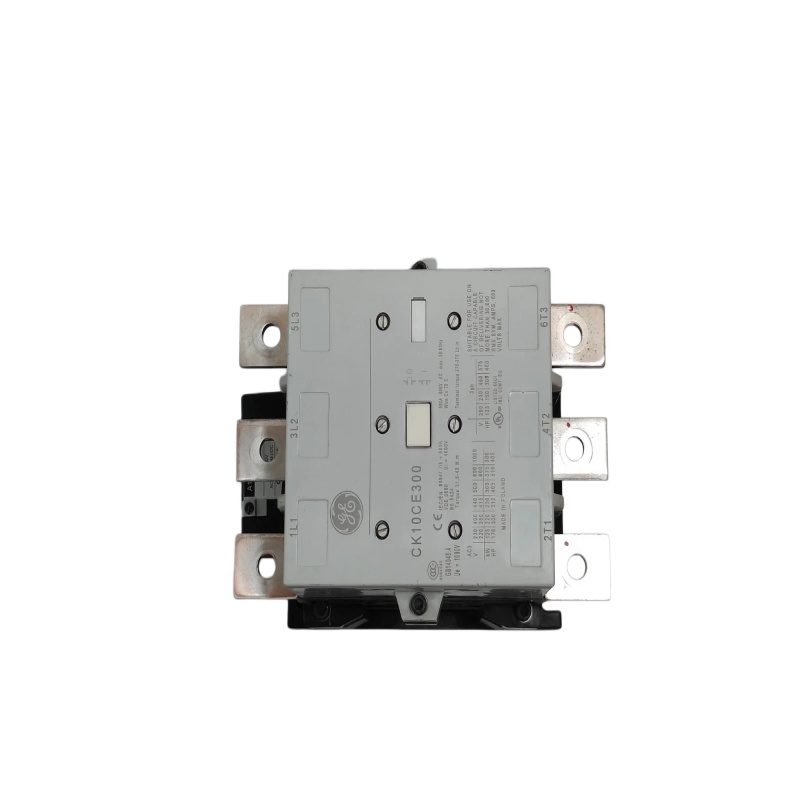

GE CK10CE300 AC Contactor: Specifications, Features, and Applications

The GE CK10CE300 is a high-performance AC Contactor manufactured by General Electric (GE) or its sub-brand, Telemecanique. Designed for heavy-duty industrial applications, this contactor is known for its robust construction, reliable switching capabilities, and ability to handle high electrical loads.

Below is a detailed guide covering the specifications, core features, and common applications of the CK10CE300 model.

1. Key Specifications

Understanding the technical parameters is crucial when selecting the CK10CE300 for your electrical system.

• Rated Current (Ie): 600 Amps (600A)
• Coil Voltage: Typically available in 110V-127V AC (common standard). A 220V AC version is also available depending on the specific configuration (e.g., CK10CE300 combined with thermal overload relays like the LR2F6577).
• Number of Poles: 3-pole configuration, designed specifically for three-phase circuits.
• Series Designation: The “CK10” denotes the core series, while “CE300” typically refers to the specific performance grade and electrical rating within that series.

2. Core Features

The CK10CE300 stands out in the GE Telemecanique portfolio due to its focus on durability and performance.

• High Electrical Durability: As a flagship model in the CK10 series, this contactor is engineered for superior making and breaking capacity. It ensures reliable switching even under high-stress conditions.
• Mechanical Robustness: Built to withstand harsh industrial environments, it is designed for frequent start-stop cycles without compromising performance.
• Heavy-Duty Performance: Optimized for high-current loads, it ensures low coil consumption while maintaining high operational reliability.

3. Common Applications

The versatility of the GE CK10CE300 makes it suitable for a wide range of industrial control systems.

• Industrial Automation: Ideal for controlling large machinery, conveyor systems, and production lines.
• Motor Control: Used extensively for starting and stopping large electric motors, pumps, and compressors.
• HVAC Systems: Suitable for heavy commercial and industrial HVAC equipment, including large compressors and fans.
• Power Distribution: Functions as a reliable switching component in power distribution panels and control cabinets.
• Variable Frequency Drives (VFDs): Often integrated into systems alongside VFDs to manage the input power of large drives.
