GE DS200CPCAG1ABB
GE DS200CPCAG1ABB – SEO Product Description
Product Overview

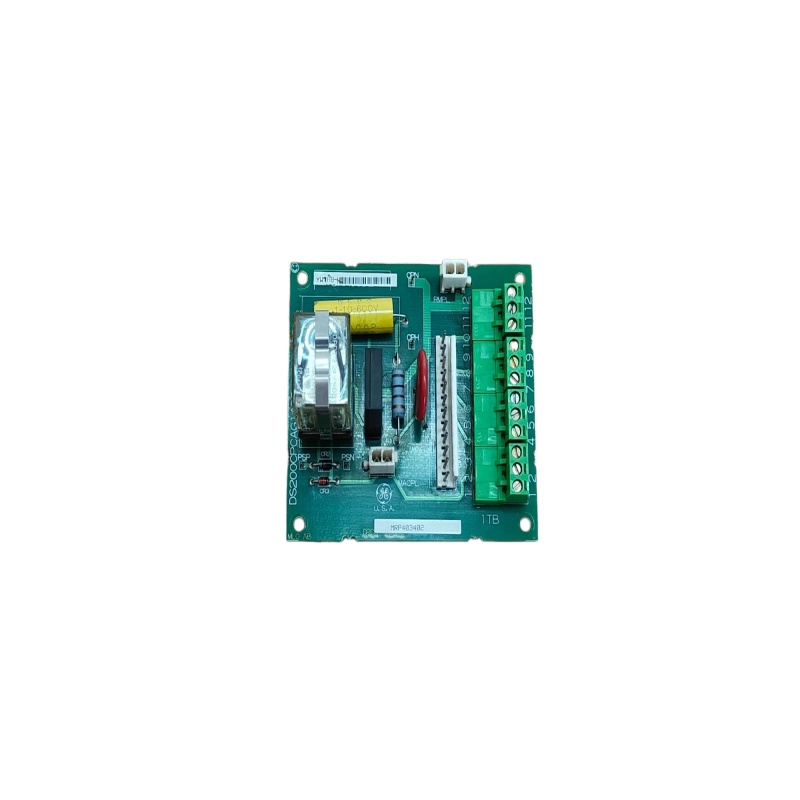

The GE DS200CPCAG1ABB Contactor Pilot Board is an important control module used in the GE Mark V Speedtronic Control System, developed by General Electric for gas and steam turbine automation.
This board acts as an interface for contactor and relay control, allowing the turbine control system to safely manage high-power circuits and switching operations within the control cabinet.
The DS200CPCAG1ABB converts AC input signals into DC power suitable for contactor activation, ensuring reliable turbine start-up, shutdown, and protection functions. It is widely installed in power plants, industrial turbine systems, and energy control facilities where dependable switching control is required.
Key Features
High-Reliability Contactor Control
Provides precise control for contactors and relays within turbine control systems.
AC to DC Conversion
Converts 115 VAC input to approximately 105 VDC output, enabling stable contactor operation.
Integrated Power Relay
Includes a 24 VDC, 15 A socket relay designed for reliable industrial switching.
Industrial-Grade PCB Design
Manufactured with durable electronic components and protective coatings suitable for harsh environments.
Flexible Connectivity
Equipped with multiple connectors and terminal blocks for simple installation and system integration.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | DS200CPCAG1ABB |
| Manufacturer | General Electric |
| Product Type | Contactor Pilot Board |
| Series | Mark V Speedtronic |
| Input Voltage | 115 VAC |
| Output Voltage | Approx. 105 VDC |
| Relay Rating | 24 VDC, 15 A |
| Connectors | Multiple PCB connectors |
| Terminal Blocks | Several field wiring terminals |
| Application | Turbine control systems |
Main Functions
- Controls contactor switching operations in turbine control cabinets
- Provides signal isolation and relay control
- Converts AC power to DC for contactor activation
- Supports safe turbine start, stop, and protection logic
Typical Applications
The GE DS200CPCAG1ABB module is commonly used in:
- Gas turbine control systems
- Steam turbine automation systems
- Combined cycle power plants
- Industrial power generation equipment
- Mark V turbine control cabinets
Why Choose DS200CPCAG1ABB?
- Designed specifically for GE Mark V turbine control platforms
- Reliable performance in industrial and power plant environments
- Easy integration with existing turbine control cabinets
- High durability for long-term continuous operation
FAQ
1. What is the function of the DS200CPCAG1ABB board?
It controls contactors and relays within the Mark V turbine control system and provides power conversion for reliable switching.
2. Which system uses DS200CPCAG1ABB?
It is designed for the GE Mark V Speedtronic turbine control system.
3. What voltage does the board use?
The board typically converts 115 VAC input into approximately 105 VDC output to operate contactors.
4. Where is this module installed?
It is usually installed inside turbine control cabinets in power plants or industrial turbine systems.
