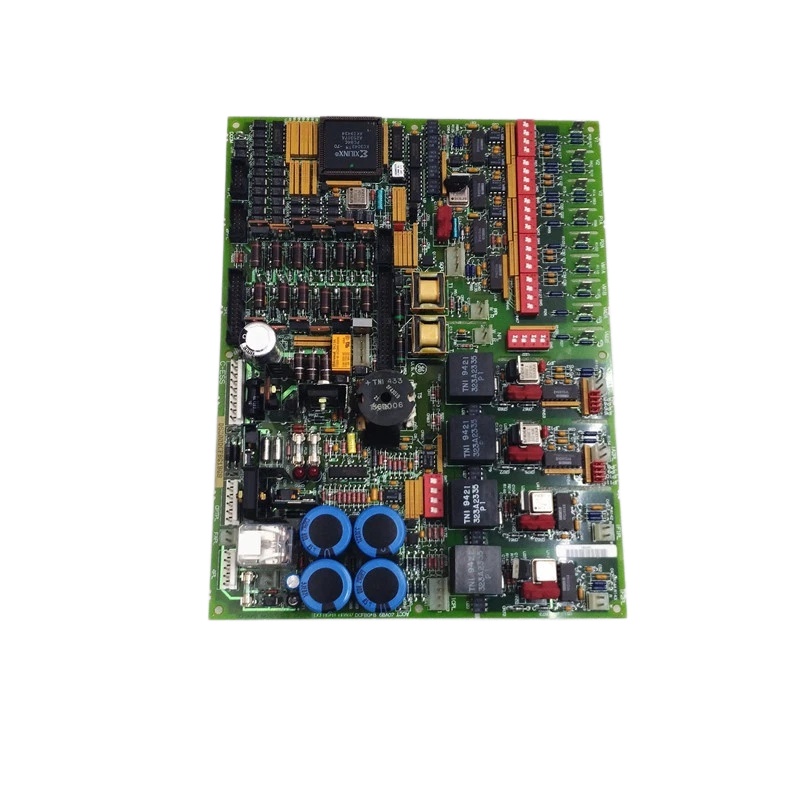

GE DS200DCFBG1BGB is a DC Power Feedback Card manufactured by General Electric (GE). It is primarily used as a power supply and feedback module within industrial automation control systems.

Main Functions

• This card is mainly used to provide DC power, control-level signals, and fan power for GE Mark V series drives, such as DC2000, CB2000, FC2000, ME2000, and AC2000.
• The typical input voltage range is 38V to 115VAC, and it can output variable-frequency control signals (0–500 kHz).

Application Scenarios

• Widely used in industrial automation, motor control, and process control systems, especially when integrated with GE Mark V series drive systems.

Product Variants

• This model is available with different suffixes (such as BGB, BLC, BJB, etc.), which usually indicate variations in physical dimensions, mounting methods (panel mounting or DIN-rail mounting), or specific interface configurations.

Reference Technical Specifications

(Based on similar DS200 series cards)

Although specific parameters may vary slightly depending on the suffix, similar models (such as DS200DCFBG1BLC) typically have the following characteristics:

• Rated power: approximately 200 W
• Input voltage: 24V DC (in some configurations) or 115VAC
• Operating temperature: −40 °C to +85 °C
• Protection rating: IP20 or IP40
• Weight: approximately 1.2 kg to 2 kg

Summary

The GE DS200DCFBG1BGB is not a standalone device, but a critical component of the GE Mark V series drive power system. It is responsible for converting external power into a stable DC supply required by the drive and supporting its control and operational functions.
