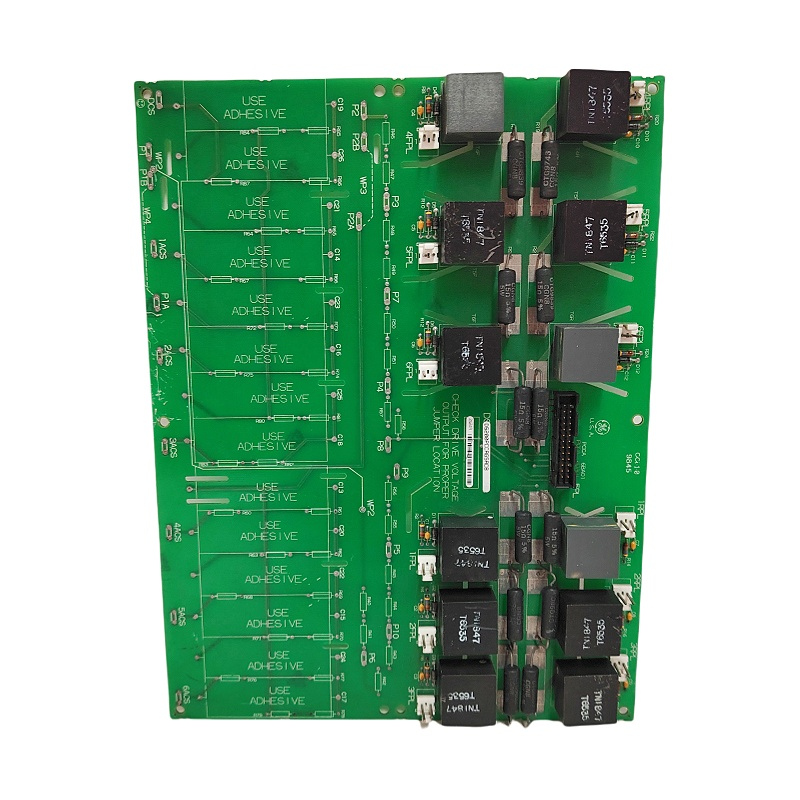

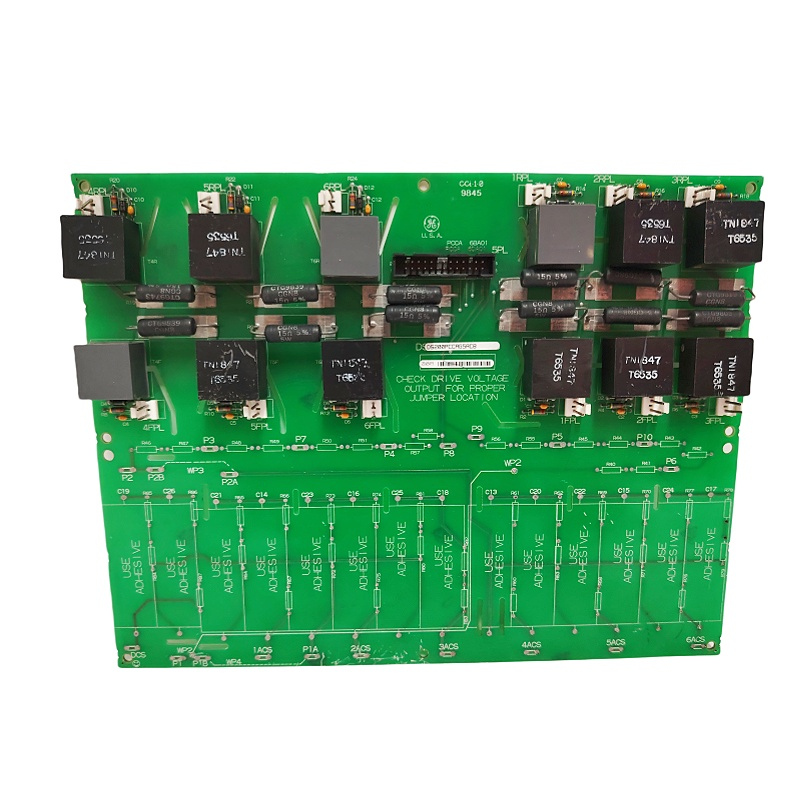

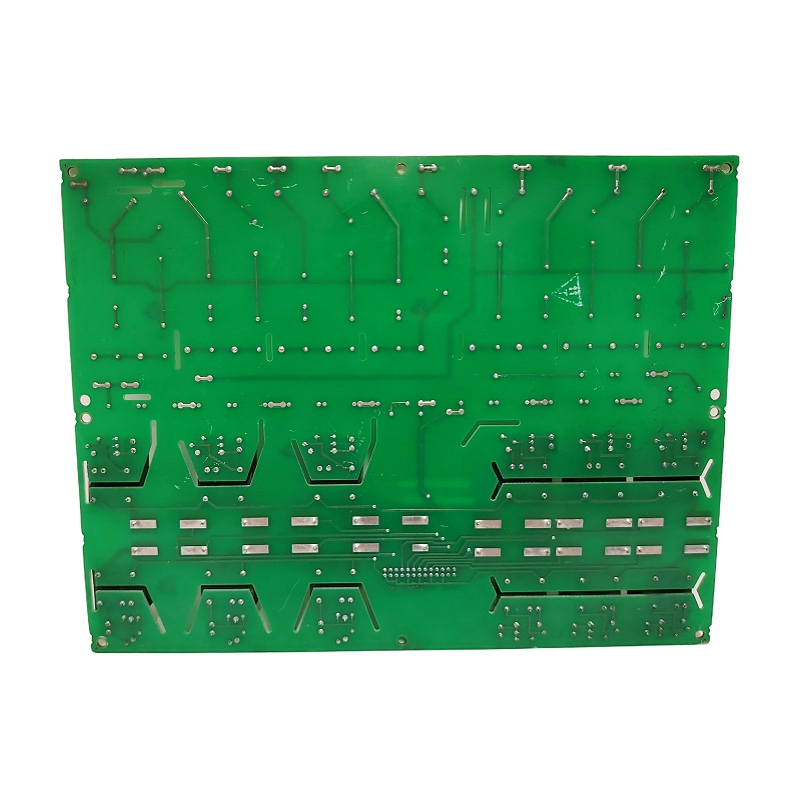

GE DS200PCCAG5ACB Power Converter Control Board Technical Specifications
The GE DS200PCCAG5ACB is a high-performance power converter control board designed for General Electric’s Mark V turbine control system. This critical component provides precise control and monitoring functions for power conversion applications in industrial automation environments.
Product Overview
The DS200PCCAG5ACB serves as a vital interface between the turbine control system and power conversion equipment. Manufactured by General Electric as part of their Speedtronic Mark V series, this board ensures reliable operation in demanding industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Part Number | DS200PCCAG5ACB |
| Series | Mark V Speedtronic |
| Function | Power Converter Control Board |
| Input Voltage | 24V DC ±10% |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Communication Interface | RS-485, Ethernet (optional) |
| Processor Type | 32-bit microprocessor |
| Memory Capacity | 8MB Flash, 4MB SRAM |
| I/O Channels | 16 digital inputs, 8 digital outputs, 4 analog inputs |
| Dimensions | 200mm x 150mm x 25mm (7.87″ x 5.91″ x 0.98″) |
| Weight | Approx. 450g (0.99 lbs) |
| Certifications | UL, CE, RoHS compliant |
Key Features
- High Reliability: Designed for continuous operation in industrial environments
- Advanced Diagnostics: Comprehensive self-test and fault detection capabilities
- Flexible Configuration: Programmable parameters for various power conversion applications
- Robust Communication: Multiple protocol support for system integration
- Real-time Monitoring: Continuous tracking of power converter performance
- Protection Functions: Overvoltage, undervoltage, overcurrent, and overtemperature protection
Applications
The GE DS200PCCAG5ACB control board is primarily used in:
- Gas turbine control systems
- Steam turbine control applications
- Power generation plants
- Industrial motor drives
- Power conversion systems
- Energy management systems
Compatibility
The DS200PCCAG5ACB is compatible with various GE Mark V system components and can interface with:
- GE Speedtronic Mark V turbine control systems
- GE EX2100 excitation systems
- Various power converter modules in the GE industrial portfolio
Maintenance & Support
For optimal performance, regular maintenance including firmware updates and periodic inspections is recommended. GE provides technical support and documentation for this module through their global service network.
Note: Specifications are subject to change without notice. Always refer to the latest GE documentation for your specific application requirements.
