Technical Parameter

Relay Type:Motor Protection

Chassis Series:SR469

Current Rating:Up to 5000 Amps

Operating Frequency:20-70 Hz

Protection Features:Overload, Short-Circuit, Ground Fault

Display:Enhanced Keypad, 40 Character LCD

LED Indicators:System Health Status, Relay Status

Analog Inputs:4 Configurable Analog Inputs

Output Relays:6 Form-C Output Relays

Storage Conditions:Flame, Corrosion, Dust Retardant

Dimensions:17 lbs, 12W x 11H x 10D inches

Power Supply:90-300 VDC, 70-265 VAC @ 48-62 Hz

Environmental Rating:Harsh/Chemical Environments

Product Details

The GE Fanuc SR469-CASE Motor Protection System is engineered for the most demanding industrial settings, ensuring continuous and safe operation of motors. With its comprehensive protection suite, it safeguards against overloads, short-circuits, and ground faults, maintaining optimal performance and extending the lifespan of industrial machinery.

Featuring an enhanced display with an expanded keypad and a wider LCD, the system provides a clear overview of system metrics and allows for easy navigation. The 40-character display scrolls through up to twenty user-defined variables, making it a versatile tool for monitoring critical system parameters.

Equipped with over twenty LEDs, the front panel offers instant visual feedback on system processes and health status. The LEDs dynamically change color—green, red, or amber—to indicate the health of each process, simplifying troubleshooting and maintenance.

With four configurable analog inputs, the system can measure various operational parameters of motors, providing precise data for monitoring and analysis. Coupled with six Form-C output relays, it enables efficient control and response to critical system events.

Crafted for durability and reliability, the SR469-CASE is housed in a flame, corrosion, and dust-retardant chassis, ensuring long-term functionality even in the most extreme conditions. The compact dimensions and robust design make it easy to integrate into existing industrial setups, enhancing overall system efficiency.

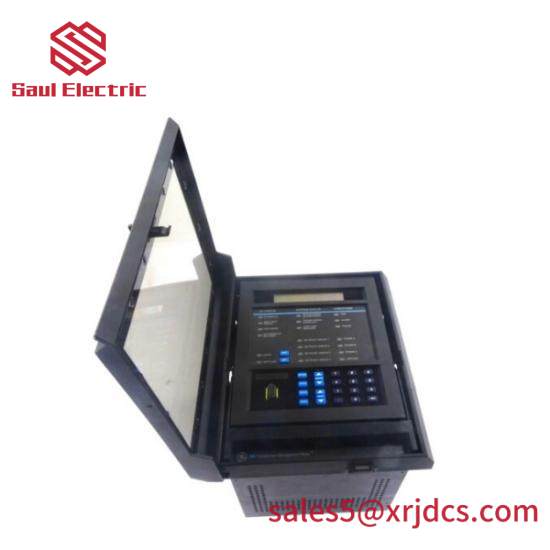

GE Fanuc SR469-CASE Motor Protection System

***************************************************
