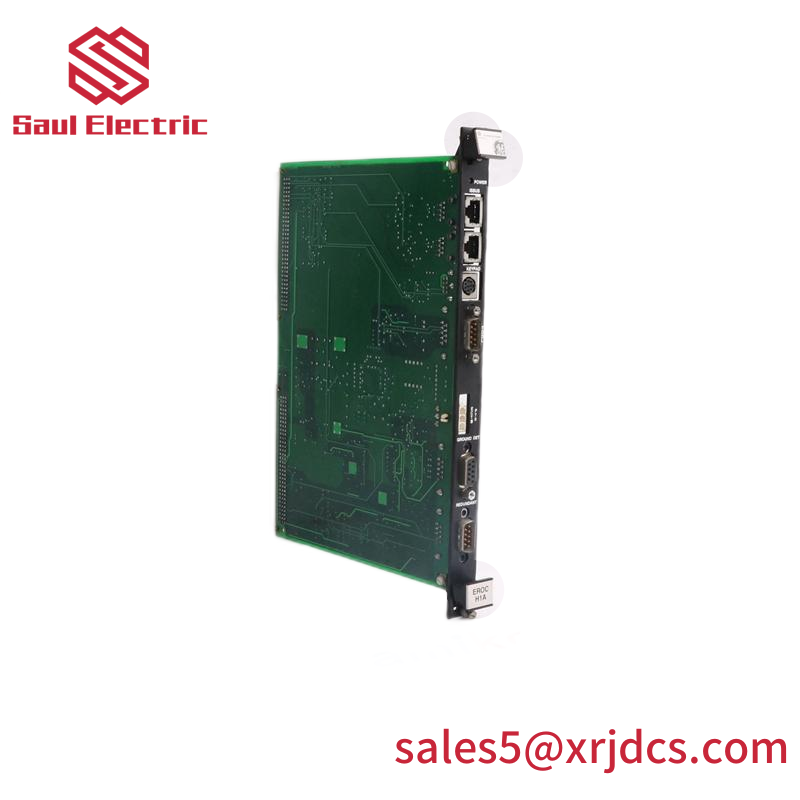

GE IS200DSPXH1DBC Digital Signal Processor Control Board for Industrial Automation

Manufacturer:GE Industrial Systems

Series:Ex2100 Excitation Control

Part Number:IS200DSPXH1DBC

Functional Description:Digital Signal Processor Control Board

Functional Acronym:DSPX

PCB Coating:Conformal Coating

Functional Revision:1D

Artwork Revision:C

Instruction Manual:GEI-100488

Clock Speed:60 MHz

I/O Connectors:P1 backplane, P5 DSP emulator, P6 engineering monitor

Onboard Memory:FLASH, RAM, NVRAM

Interfaces:Two (Master or Slave) 5 Mb/s ISBus interfaces

    The IS200DSPXH1DBC is a robust and reliable digital signal processor control board designed specifically for industrial automation applications. Its core functionality revolves around the efficient processing of digital signals, making it an indispensable component in various industrial control systems.

    This board is equipped with a 60 MHz digital signal processor, which ensures high-speed data processing and accurate signal handling. Additionally, it features an onboard application-specific integrated circuit (ASIC) for enhanced performance and flexibility.

    The IS200DSPXH1DBC supports conformal coating, which provides excellent protection against environmental factors such as moisture, dust, and chemicals, ensuring long-term reliability and durability in harsh industrial environments.

    Designed with user convenience in mind, this board includes a boot loader, application code, and configuration parameters pre-installed on the onboard memory. It also features a combination of FLASH, RAM, and NVRAM for efficient data storage and management.

    The board’s design allows for seamless integration with other components in the EX2100 series, enabling users to build comprehensive and highly functional industrial control systems. With its advanced features and robust performance, the IS200DSPXH1DBC is an ideal choice for any industrial automation project requiring precise digital signal processing.
