GE IS200ESYSH2A – EX2100e Excitation Control System Module

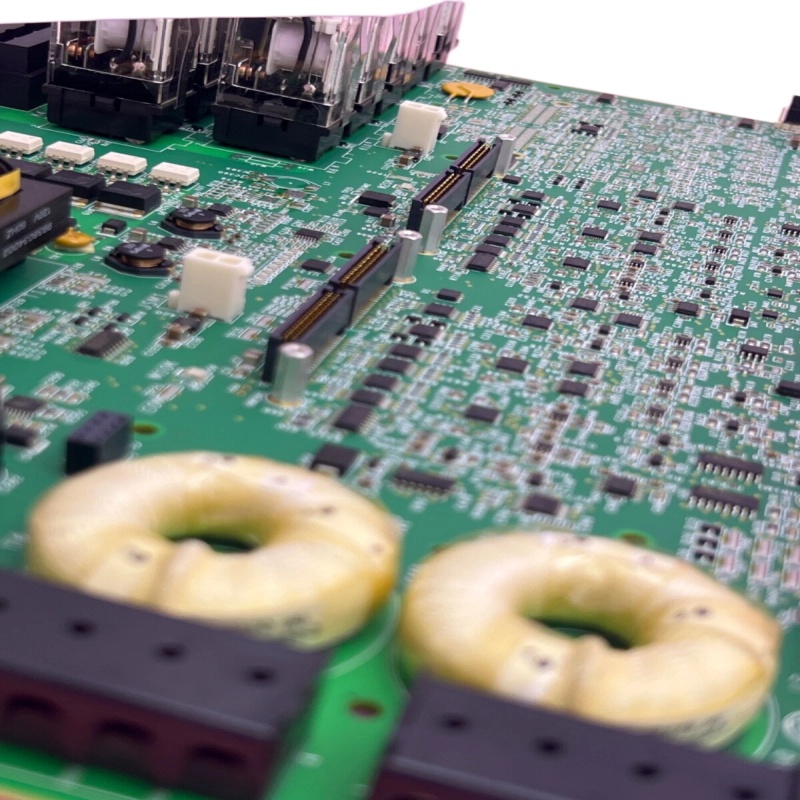

The GE IS200ESYSH2A is a critical interface/I-O board used in GE EX2100e excitation control systems for generators. It enables communication, monitoring, and control between the exciter regulator, static systems, and plant control infrastructure.
Product Overview
The IS200ESYSH2A is designed as a System Interface / I/O module within GE’s EX2100e excitation platform. It provides high-speed data exchange and redundant control for reliable generator voltage regulation and reactive power control in power plants.
Core role in system
- Interface between excitation regulator and external devices
- Supports generator voltage and reactive power control
- Enables real-time monitoring and data communication
- Designed for critical power generation environments
Typical installations:
- Gas turbine plants
- Steam turbine plants
- Hydro power plants
- Industrial cogeneration systems
Key Features
1) Dual-Redundant Control Architecture
The board includes dual control sections (M1 & M2) to maintain operation even if one control path fails. This improves uptime and system reliability.
2) High Input Capacity
- Up to 52 general-purpose inputs
- 7 auxiliary isolated contact inputs
These inputs allow flexible connection of sensors, switches, and control signals.
3) High-Speed Communication
The module supports fast data exchange between control sections and the excitation system to ensure real-time response and stable generator operation.
4) Easy Installation & Maintenance
- Removable terminal strips
- Modular DIN-rail style design
- Simplified wiring and servicing
Technical Specifications (Typical)
| Parameter | Value |
|---|---|
| Manufacturer | General Electric |
| Series | EX2100e Excitation Control |
| Module Type | System Interface / I/O Board |
| Control Sections | Dual (M1 & M2) |
| General Inputs | 52 |
| Auxiliary Inputs | 7 |
| Power Supply | Dual 55 VDC |
| Analog Output | 0–20 mA |
| Operating Temp | −30 to +65°C |
| Frequency | 50/60 Hz |
| Function | Excitation control interface |
Functions in EX2100e System
The module acts as a communication and interface hub within the excitation system:
Main functions include:
- Generator field control signal interface
- Status monitoring and diagnostics
- Data exchange between regulator and plant control systems
- Integration with turbine and static starter systems
This makes it essential for stable voltage regulation and grid compliance in modern power plants.
Application Industries
Common industries using IS200ESYSH2A:
- Power generation utilities
- Oil & gas power systems
- Heavy industrial plants
- Renewable energy integration (synchronous condensers)
Summary
The GE IS200ESYSH2A is a high-reliability EX2100e system interface board designed for mission-critical excitation control. With dual redundancy, large I/O capacity, and high-speed communication, it plays a key role in ensuring generator stability, plant uptime, and grid compliance.
