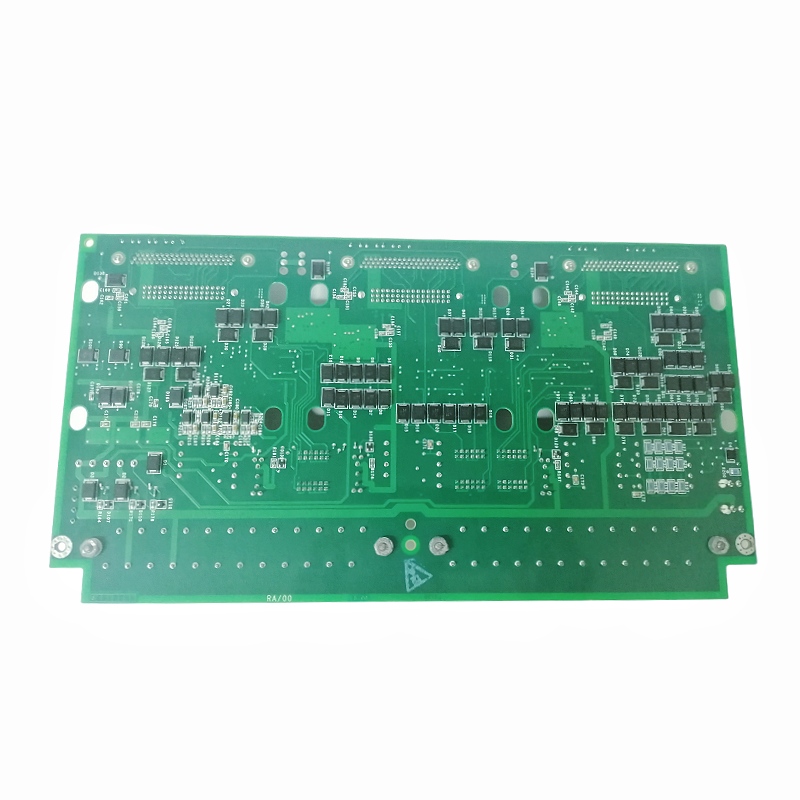

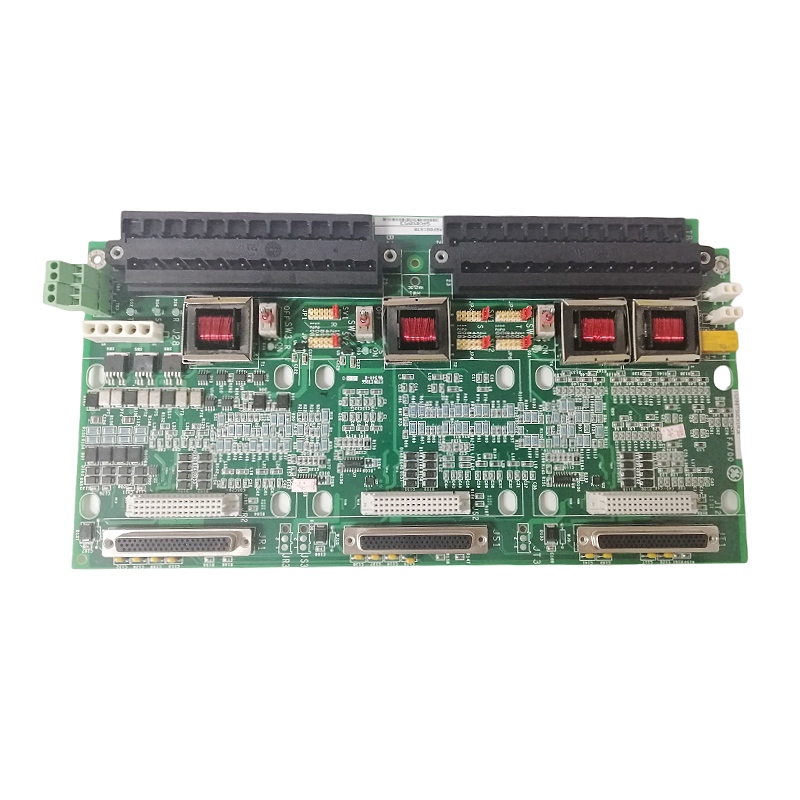

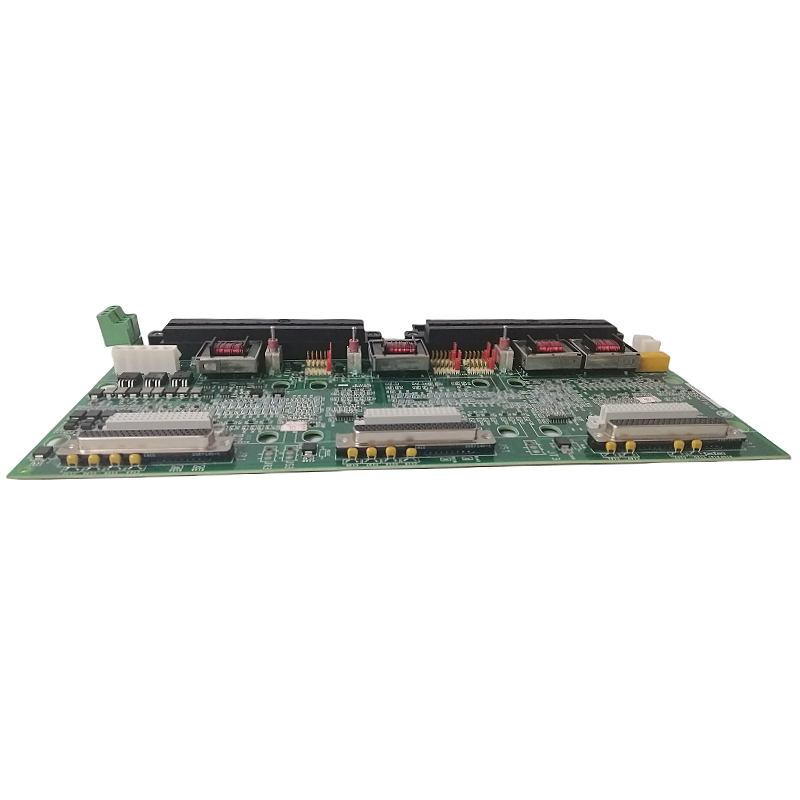

The GE IS200TSVCH1AJE is a printed circuit board (PCB) designed for industrial automation and control systems, particularly within General Electric’s Mark VI Speedtronic turbine control system. Below is a detailed overview of its technical specifications, based on the search results:

? 1. Basic Specifications

• Model: IS200TSVCH1AJE
• Dimensions: 13.39 inches (length) × 8.5 inches (width) × 2.17 inches (height)
• Weight: Approximately 2.2 pounds (1.00 kg)
• Input Voltage Range: 12–48 VDC
• Output Voltage: 5 VDC
• Power Consumption: 10 watts
• Operating Temperature Range: -40°C to +85°C

⚙️ 2. Functional Overview

The IS200TSVCH1AJE is an analog I/O board part of the Mark V series, used primarily in gas turbine control systems. It conditions and scales analog signals from terminal boards installed in I/O racks (R1, R2, R3). Key functions include:

• Signal processing for LVDT inputs, servo valve outputs, thermocouple inputs, 4–20 mA inputs/outputs, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, and generator/line signals .
• Communication with other boards (e.g., STCA, TCQC) via connectors like 3PL (data bus) and JE (generator/line signals) .
• Configurable current output ranges (20 mA or 200 mA) via hardware jumpers (J5, J6) .

? 3. Connectors and Interfaces

• 2PL: Distributes power from TCPS boards .
• 3PL: Data bus connecting STCA, TCQA, and TCQE boards for COREBUS communication .
• JA: Handles thermocouple inputs and cold junction compensation .
• JB: Transmits 4–20 mA inputs/outputs to/from TBQC terminal boards .
• JE: Transfers pulse signals, generator/line signals, relay driver outputs, and servo valve drives to/from TCQC boards .
• JG: Carries ±10 VDC inputs and vibration inputs from TBQB terminal boards .

? 4. Applications

• Energy & Power: Vibration monitoring for turbines, compressors, fans, pumps, and other large rotating machinery .
• Industrial Automation: Used in DCS monitoring systems, smart flat tempering furnace systems, PLC-based conveyor control systems .
• Aerospace & Telecommunications: Applied in industries requiring high reliability and performance under harsh conditions .

? 5. Key Features

• High Reliability: Multilayer PCB design ensures flexibility and integration in diverse industrial environments .
• Diagnostics: Includes advanced diagnostic features for troubleshooting and maintenance .
• Compatibility: Compatible with GE’s Mark VI and designed for use with PSVO I/O packs and WSVO servo drivers .
• ESD Sensitivity: Requires proper ESD safety measures during handling .
