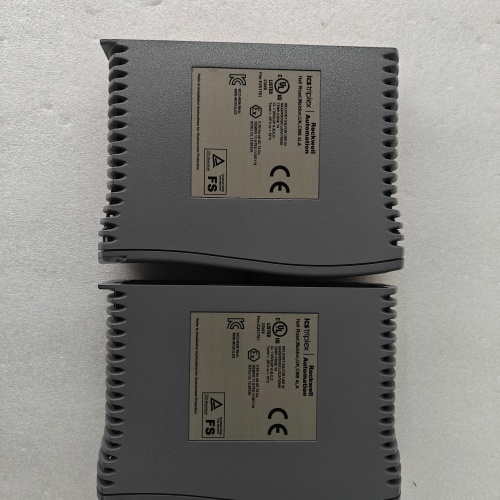

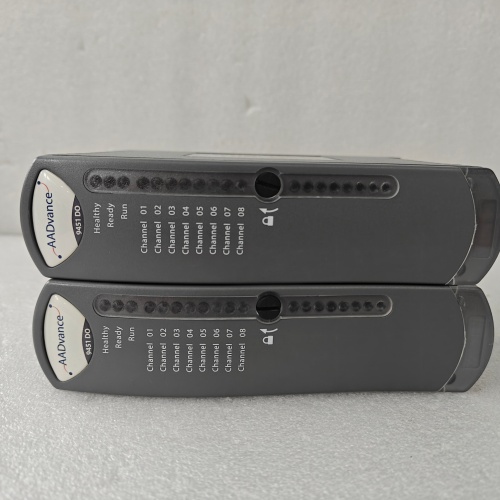

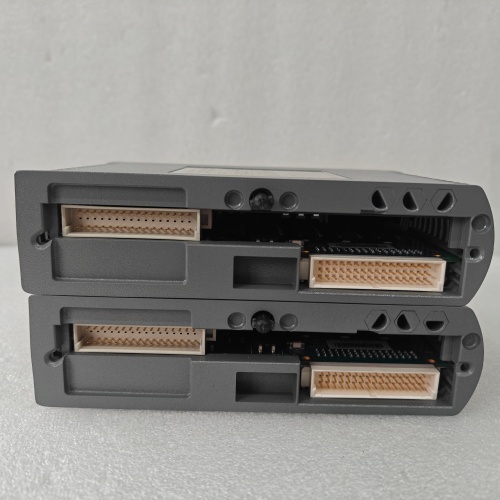

ICS TRIPLEX T9451 Overview

The ICS TRIPLEX T9451, developed by Honeywell (formerly ICS Triplex), is an industrial control system module designed for high-reliability and redundant-safety applications. It is primarily used for digital and analog signal acquisition and output in critical control environments.

1. Basic Positioning

• Digital Input Module: Receives digital signals from external sensors and switches, converting them into digital data for the control system.
• Safety Control Module: Certified to SIL 3 standards, featuring a TMR (Triple-Modular-Redundant) architecture for safety monitoring and fault diagnostics.
• Multifunction I/O Expansion: Provides an integrated solution for digital, analog, and communication interfaces.

2. Key Technical Specifications (Digital I/O version example)

3. Functional Highlights

• High Availability: Incorporates TMR redundancy, ensuring SIL 3 safety compliance with hot-swappable and self-diagnostic capabilities.
• Flexible I/O Configuration: Digital and analog channels can be freely combined to meet on-site requirements, supporting various process variables such as temperature, pressure, and flow.
• Multi-Protocol Compatibility: Supports Ethernet, Modbus, OPC, and Profibus for easy integration with upper-level systems (e.g., SCADA, DCS).
• Rapid Deployment: Compact, modular design allows direct installation in control cabinets or field enclosures; configuration software enables convenient parameter setup.

4. Typical Application Scenarios

• Oil & Gas: Safety monitoring and redundant control of critical valves and pump stations.
• Power Generation: Acquisition and protection of digital/analog signals in generator units and substations.
• Chemical & Pharmaceutical: Real-time monitoring and control of temperature, pressure, and flow process variables.
• Water & Wastewater Treatment: Reliable control and diagnostics for pumps and valves.

Summary

The ICS TRIPLEX T9451 is a multifunctional I/O module designed for industrial automation environments that demand high safety and redundancy. With integrated digital/analog signal processing, comprehensive communication interfaces, and SIL 3-certified reliability, it provides a robust solution for critical industries such as oil & gas, chemical, and power generation.
