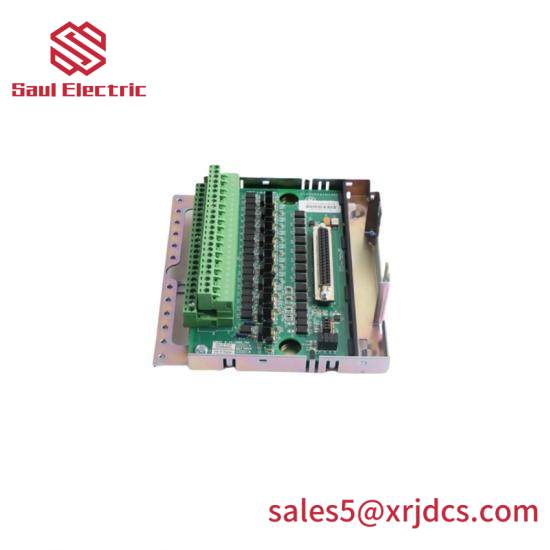

NAI 64SD1-08KRF1-13 – High-Performance Industrial Control Module

Module Type:Industrial Control Module

Manufacturer:NAI

Model:64SD1-08KRF1-13

Channels:64 Channels

Input Range:0-10V DC or 4-20mA

Resolution:16-bit

Sampling Rate:Up to 10 kHz

Communication Protocol:Modbus RTU/ASCII

Operating Temperature Range:-40°C to 85°C

Power Supply:9-32V DC

Dimensions:85mm x 85mm x 25mm

Weight:0.2kg

    The NAI 64SD1-08KRF1-13 is meticulously engineered to provide robust performance in demanding industrial settings. With 64 channels (32 digital inputs and 32 digital outputs), it ensures seamless connectivity and data transfer. Operating within a wide temperature range of -25°C to +70°C, this module is built to withstand harsh environmental conditions. Its protection rating of IP65 makes it resistant to dust and water ingress, ensuring long-term reliability. Designed with ease of use in mind, the module can be easily integrated into existing systems using standard RS485 or CAN Bus interfaces. Its compact size (150mm x 100mm x 50mm) and lightweight design (0.5kg) make it an excellent choice for space-constrained installations. With a maximum current capacity of 10mA per input channel and 0.5A per output channel, this module supports a wide range of devices and applications, making it a versatile solution for industrial automation.
