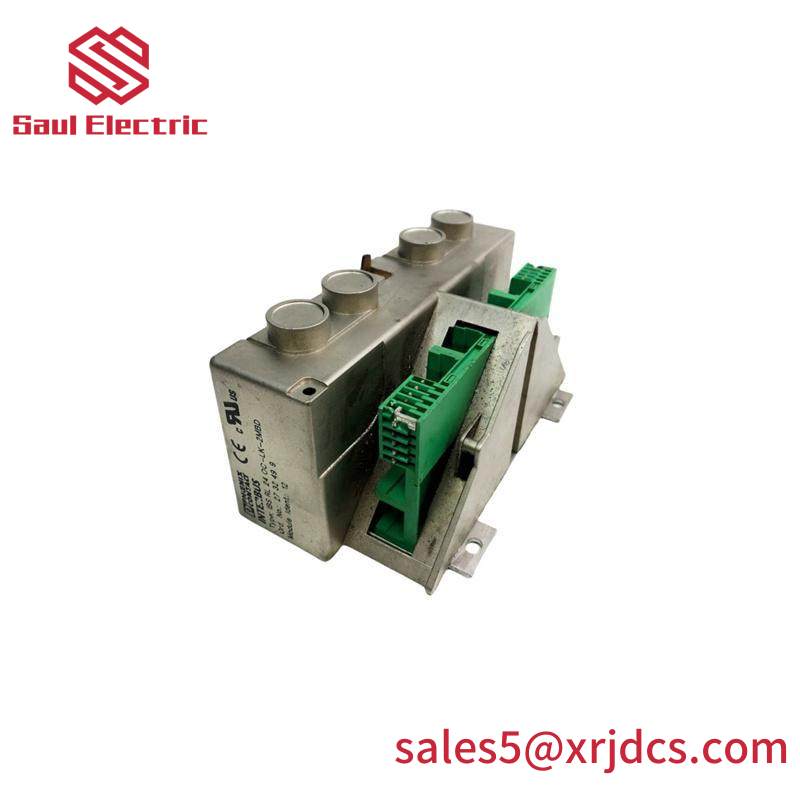

PHOENIX IBS 24BK-I/O-T: Industrial I/O Bus Terminal Module

Model:IBS 24BK-I/O-T

Brand:PHOENIX CONTACT

Number of Inputs:16

Number of Outputs:16

Operating Voltage:24 V

Protection Class:IP20

Material:Ruggedized Metal

Connector Type:DIN Rail

Insulation Voltage:400 V

Suitability:For Industrial Automation Systems

Physical Dimensions:150 x 100 x 60 mm

Wire Diameter:0.25-0.5 mm

Environmental Temperature Range:-20°C to +60°C

Connection Type:Optical Fiber or Cable

Communication Speed:500 kbps

Supply Current:Typical 120 mA, Sensor Current: Variable

Protocol Compatibility:MODBUS RTU

    The Phoenix IBS 24BK-I/O-T is a high-performance I/O bus terminal module designed for seamless integration into industrial automation systems.

     With 16 digital inputs and 16 digital outputs, this module enables precise data acquisition and control, enhancing system efficiency and reliability.

     The compact design, featuring dimensions of 60 mm x 115 mm x 98 mm and a weight of approximately 120g, makes it easy to install in tight spaces.

     Operating within a temperature range of -25°C to +55°C, it ensures reliable performance in various environmental conditions.

     The module supports 24V DC power supply and complies with the IP20 protection rating, providing robust performance in demanding industrial environments.

     Its modular design allows for flexible configuration and expansion, making it suitable for a wide range of industrial applications.
