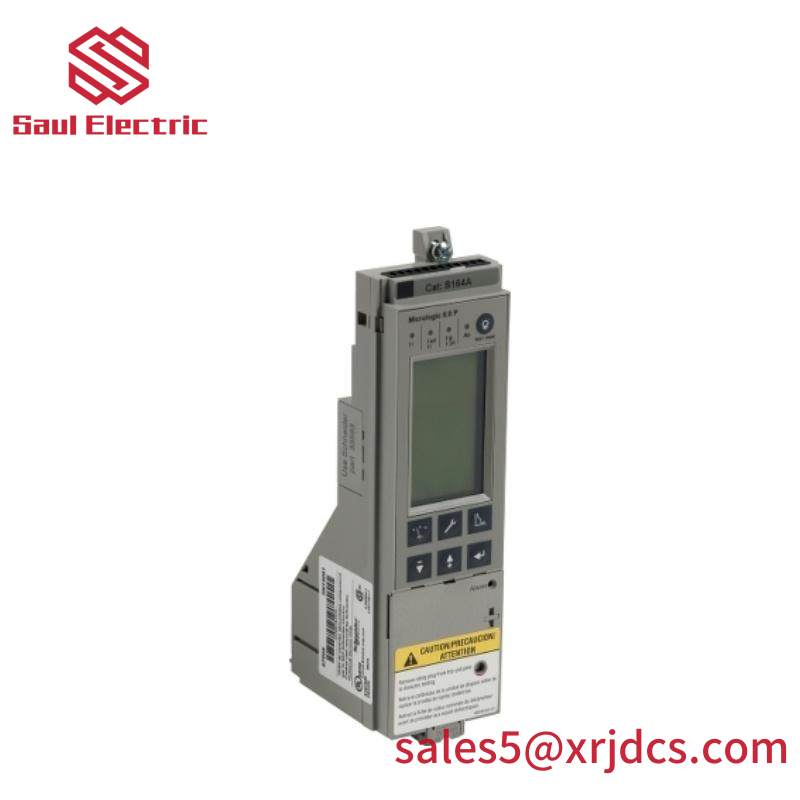

Schneider Electric S164A Trip Unit – Circuit Breaker Module

Operating Voltage:Up to 690V AC

Current Rating:160A to 630A

Trip Characteristics:Instantaneous, Delayed, and Long-Time

Mechanical Life:Over 10,000 operations

Environmental Conditions:Temperature range from -25°C to +60°C, humidity up to 95% RH non-condensing

Protection Class:IP20 enclosure

Compliance Standards:IEC 60947-2, UL 1047

    The Schneider Electric S164A Trip Unit is engineered to deliver superior circuit protection with its robust mechanical design, ensuring continuous operation in demanding industrial environments.

    With a voltage rating of 690V AC and a current rating of 400A, this trip unit is suitable for a wide range of industrial circuits, offering reliable performance under various load conditions.

    Operable within a temperature range from -25°C to +40°C, it ensures stable function in a broad spectrum of climates, making it ideal for global industrial installations.

    Featuring Class E protection, the S164A Trip Unit is designed to withstand severe overloads and short circuits, safeguarding connected equipment against damage.

    Utilizing a straightforward mechanical operating mechanism, this trip unit offers easy integration into existing systems, simplifying maintenance and troubleshooting processes.
