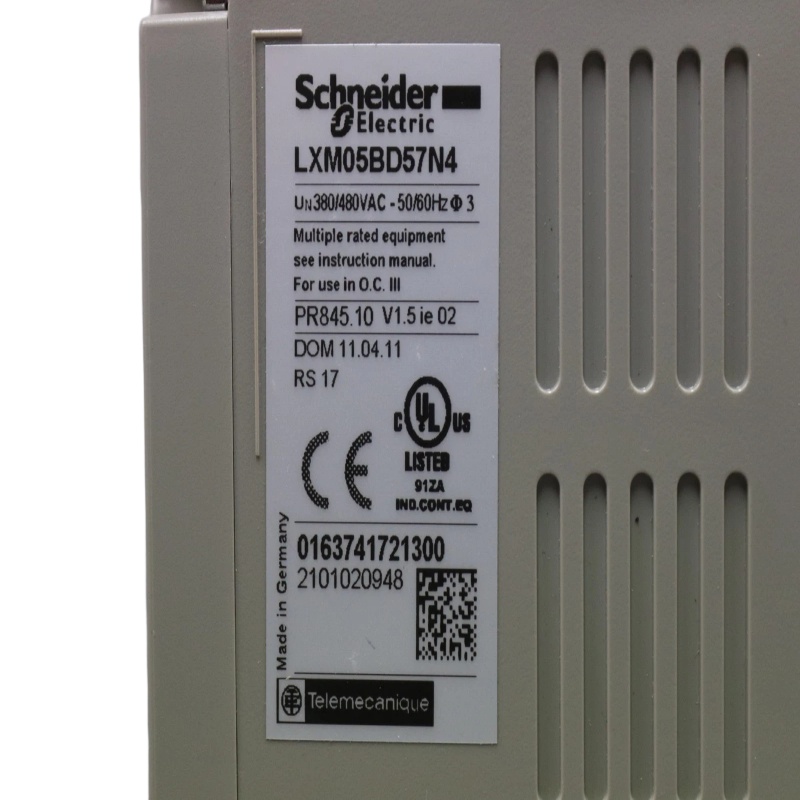

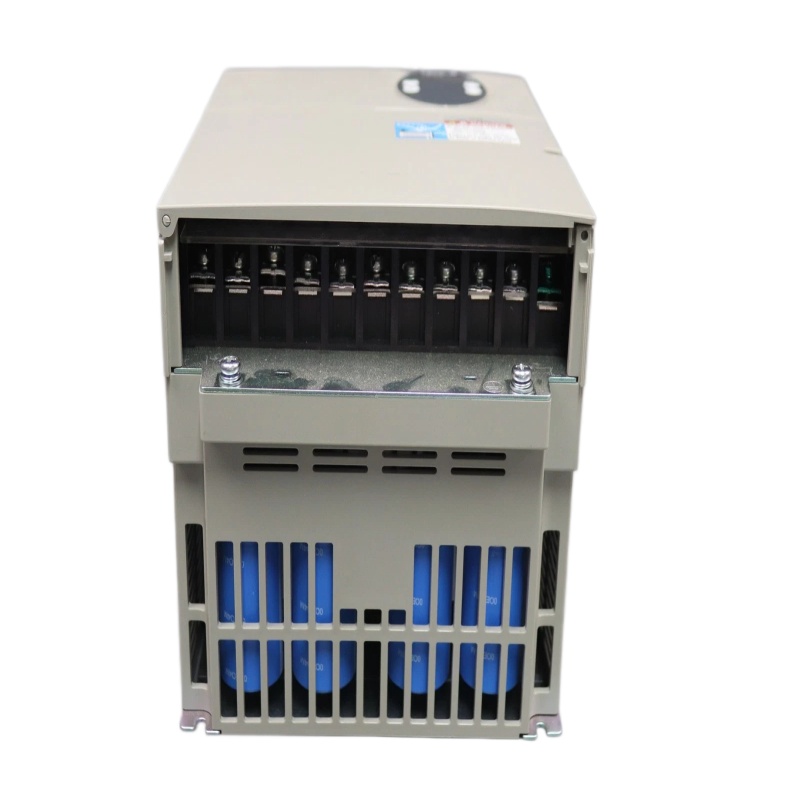

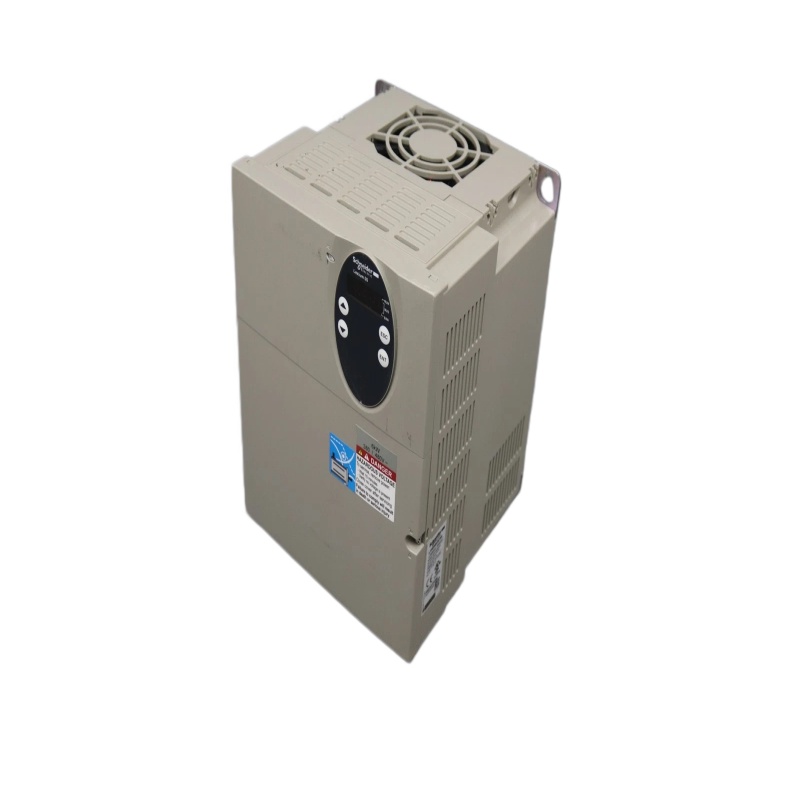

Schneider LXM05BD57N4 – Overview

Schneider LXM05BD57N4 is a Lexium 05 series high-power servo drive designed for precise motion control in industrial automation systems such as packaging, robotics, printing, and material handling.

Key Specifications

Product type: Motion servo drive (Lexium 05)
Rated power: 6 kW
Supply voltage: 380–480 V AC, three-phase
Output current: up to 57 A peak
Integrated EMC filter: Yes
Protection rating: IP20
Typical weight: ~4.8 kg
Dimensions: approx. 230 × 170 × 180 mm

This drive is built to control Schneider servo motors with high dynamic performance and accuracy.

Communication & Control

The drive supports industrial fieldbus and motion integration:

PROFIBUS-DP
Modbus
These allow easy integration into PLC and distributed control systems.

Performance & Motion Capability

When paired with compatible Lexium motors, the drive supports:

Nominal motor speed around 3000 rpm
Nominal torque about 10.8 Nm
Peak stall torque about 63 Nm

This makes it suitable for medium-to-high power servo applications requiring fast acceleration and precise positioning.

Lifecycle Status (Important)

Product discontinued: 31 Dec 2013
End of service life: 31 Dec 2022

This means it is now considered obsolete, typically replaced by newer Schneider Lexium series (such as Lexium 32 / Lexium 62).

Typical Applications

Packaging and labeling machines
CNC and machine tools
Robotics and pick-and-place systems
Conveyor and material handling lines

Summary

The LXM05BD57N4 is a robust legacy Schneider servo drive delivering:

6 kW motion control performance
380–480 V 3-phase operation
PROFIBUS/Modbus connectivity
High precision servo motor control
