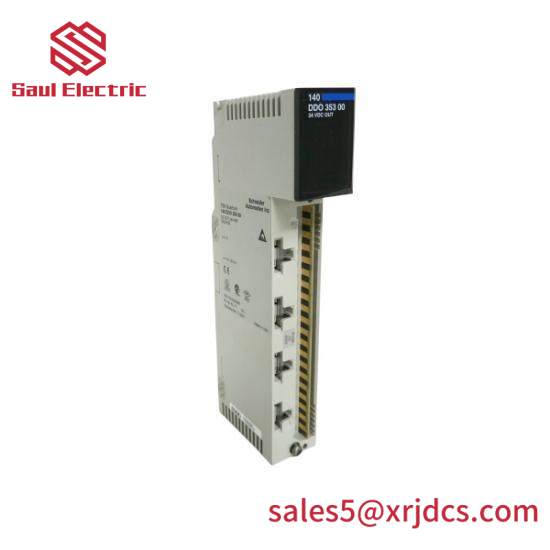

Schneider Modicon 140DDO35300 Discrete Output Module

Product Type:Discrete Output Module

Model Number:140DDO35300

Manufacturer:Schneider Electric

Automation Platform:Modicon Quantum

Output Quantity:32

Output Voltage:24 V DC

Channel Groups:4 groups of 8

Power Dissipation:1.75 W + (0.4 V x total module load current)

Bus Current Requirement:Not specified

Product Weight:0.99 lb (US) (0.45 kg)

Input Impedance:Not specified

Absolute Maximum Input Voltage:30 V continuous, 56 V during 1.3 ms decaying pulse

Input Voltage Limits:19.2…30 V

Leakage Current:200 mA at Us = 5.5 V and Uin = 4 V

    The Schneider Modicon 140DDO35300 Discrete Output Module is specifically engineered for high-demand industrial environments. This robust and efficient module ensures precise signal transmission, making it an indispensable part of your automation strategy.

    With its compact design and modular capabilities, this module seamlessly integrates into the Modicon Quantum automation platform, providing unparalleled performance and reliability.

    Featuring 32 discrete outputs across four groups, each with a voltage rating of 24 V DC, the module supports a wide array of control functions, from simple on/off operations to more complex state transitions.

    The 1.75 W power dissipation ensures stable operation under varying loads, while the maximum leakage current specification guarantees safety and reduces energy loss.

    Designed for durability and efficiency, this module is ideal for applications requiring high-speed signal processing and precise control, ensuring optimal performance in diverse industrial settings.
