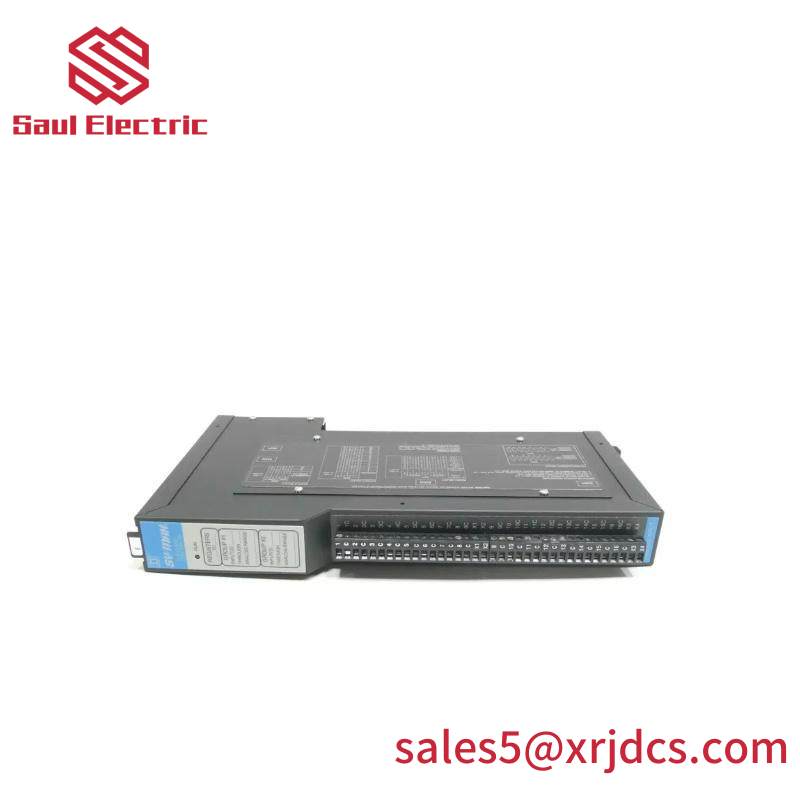

Square D SY/MAX 8030-RIM125 Analog Input Module

Model Number:8030-RIM125

Category:Analog Input Module

Brand:Square D

Type:Industrial Control System

Operating Voltage Range:9 to 32 VDC

Channels:12

Sampling Rate:10 samples per cycle

Accuracy:+/- 1% full scale

Communication Interface:RS-485 Modbus RTU

Power Consumption:Max 50 mW

Environmental Rating:IP20 (Non-Extrinsic)

Temperature Range:-20°C to +70°C

Dimensions:94 x 49 x 123 mm (L x W x H)

    The Square D SY/MAX 8030-RIM125 Analog Input Module is a cornerstone of industrial automation, engineered for seamless integration into complex control systems. Its robust design ensures reliable operation under demanding environmental conditions, making it suitable for various industries including manufacturing, energy, and process control.

    Featuring a 12-bit resolution, this module delivers unparalleled precision in acquiring analog signals, enabling precise control and monitoring of processes. With an operating voltage range from 12V to 60V DC, it offers versatility in power supply requirements.

    Capable of measuring current inputs from 0mA to 20mA, it supports a wide range of sensors and transmitters commonly used in industrial settings. The isolation rating of 2500V AC provides protection against electrical interference and ensures safety in hazardous environments.

    Designed with an IP20 rated enclosure, the module is protected against dust and splashes, ensuring durability and longevity even in harsh industrial environments. It’s a testament to Square D’s commitment to delivering high-quality, reliable products for industrial automation.

    Ease of use is another highlight, with straightforward installation and intuitive configuration options. The module supports both standard and custom configurations, catering to diverse project needs and integration scenarios.
