1. Core Specifications

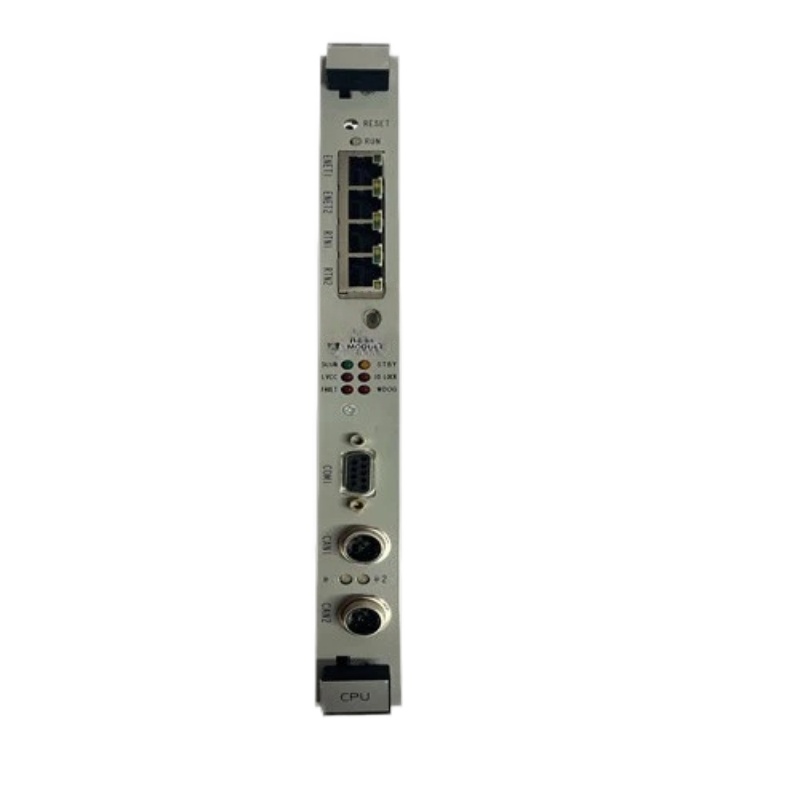

This model is a CPU control module in the Woodward Micronet series, serving as the “brain” of the system. It is primarily responsible for executing control algorithms and processing field data.

• Processor architecture: Equipped with a Motorola PowerPC MPC5200 processor from Motorola, running at approximately 400 MHz, delivering strong real-time computing performance.
• Memory configuration: 64 MB Flash memory for program and data storage, plus 128 MB DDR RAM providing ample runtime capacity.
• Power requirements: 24 V DC (±10% tolerance), with typical power consumption below 15 W, compatible with standard 24 V industrial power supplies.
• I/O interfaces:
  • Analog: Supports analog signal input/output (e.g., current loops).
  • Digital: Digital inputs/outputs (relay type) for controlling external solenoid valves, pumps, and similar devices.
• Mechanical dimensions: Typical size is 100 mm × 120 mm × 60 mm (W × H × D). DIN-rail mounting allows easy integration into standard control cabinets.
• Environmental suitability: IP20 protection rating, suitable for protected industrial environments. Operating temperature range is 0 °C to +60 °C; storage temperature range is −25 °C to +70 °C.

2. Typical Application Scenarios

• Gas turbine control: Used to monitor and regulate gas turbine speed, fuel flow, and exhaust temperature, making it a key component in aviation engines and power generation plants.
• Diesel engines and steam turbines: As part of the 505E series digital control solutions, it is widely applied in marine propulsion systems and steam turbine generator sets, providing high-precision speed and load control.
• Industrial automation: In large-scale factory energy management systems, it is used to monitor and control the operating status of large motors and compressors.

Summary

WOODWARD 5466-1035 is a highly reliable industrial control core module, well suited for demanding power equipment and energy system applications.
