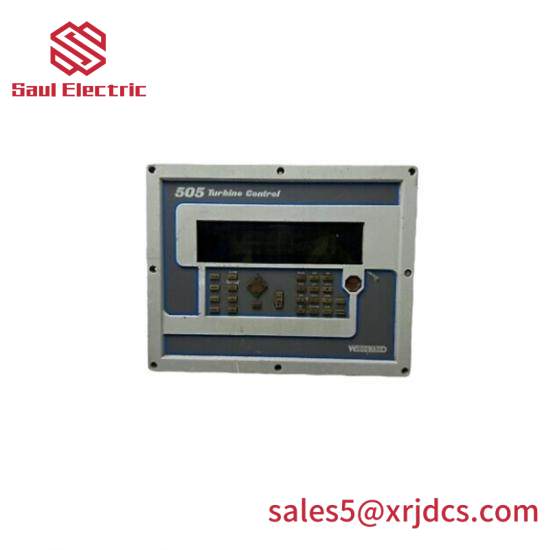

Woodward 9907-167: 505E Series Microprocessor-Based Control Unit with Upload/Download Capability

Certifications:CE, UL, and cUL

Dimensions:14L x 11H x 4D (inches)

Enclosure Type:NEMA 4

Features:Program upload/download capability, Dual Speed/Load Dynamics, Keypad/Display with 30 Analog Keys

Input Voltage:18–32 Vdc

Keypad/Display:30 Analog Keys

Manufacturer:Woodward

Operating Temperature:-13°C to +149°F

Output Type:2 Actuator Outputs, 8 Relay Outputs, 6 Programmable Current Outputs

Resolution:2 Rows of 12 Characters

Standards:Shock Protection meets US MIL-STD-810C, method 516.2-1, procedure 1B

Weight:Less than 10lbs. before shipping

    The Woodward 9907-167 control unit is meticulously designed for industrial applications requiring reliable performance and advanced functionality. With its program upload/download capabilities, users can easily configure and update settings directly through the keypad/display interface. This unit supports a wide range of input voltages, making it adaptable to various environments and power supplies. Equipped with dual actuator outputs, relay outputs, and programmable current outputs, it provides flexible control options for a variety of applications. The rugged NEMA 4 enclosure ensures protection against dust and water, enhancing durability in harsh industrial settings. Its lightweight design and compact dimensions make installation and integration seamless. Furthermore, the Woodward 9907-167 meets stringent safety and quality standards including CE, UL, and cUL certifications, providing peace of mind for operators and end-users alike.
