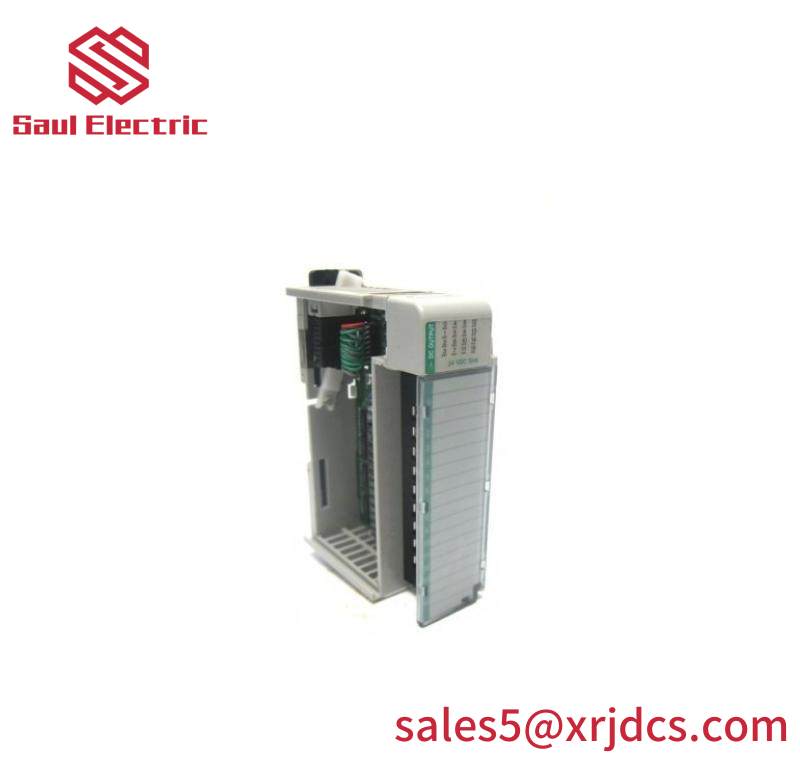

AB 1769-OV16: 16-Point 24 VDC Sinking Output Module for Industrial Control Systems

Number of Outputs:16

Output Type:Sinking

Supply Voltage:24 Vdc

Current Rating per Channel:Up to 500 mA

Operating Temperature:-20°C to +60°C

Communication Protocol:ControlNet, DeviceNet, EtherNet/IP

Mounting:Panel or DIN rail

Enclosure Type:IP20

    The AB 1769-OV16 is specifically engineered to deliver exceptional performance in industrial automation environments. Its 16-point configuration offers versatility, enabling it to manage a wide range of outputs efficiently.

    Featuring a 24 VDC sinking output, this module ensures compatibility with various industrial devices requiring low voltage control signals. Each channel is rated at 50 mA, providing sufficient current to drive loads effectively without overheating or compromising system stability.

    Designed with durability in mind, the AB 1769-OV16 operates within a broad temperature range (-40°C to +70°C), making it suitable for use in extreme environments. Its IP20 enclosure protects against dust and light splashes, enhancing reliability in harsh conditions.

    Integrated with a ControlNet communication interface, the module seamlessly connects with other components in an industrial network, facilitating data exchange and control across the entire system. This feature supports real-time monitoring and control, optimizing productivity and efficiency.

    With dimensions of 72 mm x 90 mm x 110 mm and weighing just 0.2 kg, the AB 1769-OV16 is compact and lightweight, ideal for space-constrained installations. Its panel mounting design allows for easy integration into existing control panels, minimizing setup time and complexity.
