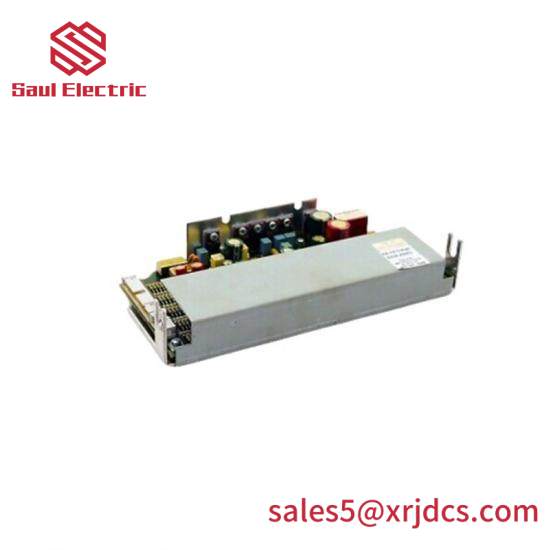

ABB 3HAA3563-AMA/0 Serial Measurement Board

Type:Serial Measurement Board

Model:3HAA3563-AMA/0

Series:ABB

Application Environment:Industrial

Operating Temperature Range:-25°C to +60°C

Data Transmission Protocol:RS-485

Maximum Data Rate:10 Mbit/s

Power Supply Voltage:DC 12V to 30V

Power Consumption:≤1W

Connector Type:M12

Number of Channels:8

Accuracy:+/-0.05% + 1LSB

Communication Distance:Up to 1500m

    The ABB 3HAA3563-AMA/0 Serial Measurement Board is a cutting-edge component designed to enhance the performance of industrial automation systems. This board excels in high-precision serial data acquisition, making it an indispensable tool for optimizing complex process control environments.

    Featuring 16 channels for versatile data input, this board supports a wide measurement range from -19.999 to +19.999 VDC, ensuring accurate readings under various conditions. Its exceptional accuracy of ±0.01% makes it ideal for critical applications requiring precision.

    Equipped with advanced communication capabilities through its RS-485 protocol, the board ensures reliable data transfer at a maximum rate of 1 Mbps. This robust connection facilitates seamless integration into existing industrial networks, enhancing system reliability and efficiency.

    Engineered for durability and reliability, the ABB 3HAA3563-AMA/0 can withstand harsh industrial environments with its temperature range of -20°C to +70°C and humidity resistance up to 95% RH without condensation. Its compact size (120mm x 90mm x 30mm) allows for easy panel mounting, ensuring a neat and efficient installation.

    This serial measurement board is compatible with a wide range of industrial protocols, making it a versatile addition to any automation setup. Its user-friendly design and compatibility with diverse industrial standards ensure seamless integration, streamlining system setup and maintenance processes.
