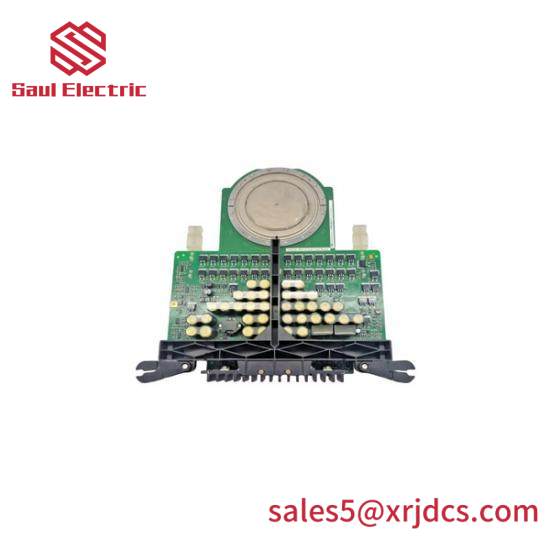

ABB 5SHY3545L0010 & 3BHB013088R0001: High-Performance IGCT Module

Power Rating:2500A @ 1kHz

Switching Frequency:Up to 20kHz

Module Size:250mm x 150mm x 50mm

Cooling Method:Thermal Conduction Cooling

Operating Temperature Range:-40°C to +125°C

Input Voltage:1200V AC

Output Current:Variable

Protection Level:IEC 60071-1 Class I

    The ABB 5SHY3545L0010 / 3BHB013088R0001 IGCT Module is specifically engineered for industrial automation applications requiring robust performance and reliability. This module is characterized by its ability to withstand harsh operating conditions, ensuring stable and efficient operation in various industrial settings.

    Featuring advanced semiconductor technology, the IGCT Module delivers high switching speeds and low losses, making it an ideal choice for power-intensive applications. Its precise control capabilities enable accurate energy management, enhancing system efficiency and reducing operational costs.

    This product is meticulously designed with a focus on user convenience and ease of integration. The module is compatible with a wide range of industry-standard connectors, facilitating seamless connection to existing infrastructure without the need for complex modifications.

    To ensure optimal performance and longevity, the ABB 5SHY3545L0010 / 3BHB013088R0001 IGCT Module undergoes rigorous testing under simulated industrial conditions. This includes environmental stress screening, electrical stress testing, and durability assessments, guaranteeing a product that meets the highest standards of quality and reliability.

    In terms of safety and compliance, the IGCT Module complies with international standards including ISO 9001 for quality management, CE for European safety, and UL for North American safety certification. These certifications provide assurance that the product is safe for use in diverse global markets.
