Technical Parameter

Model Number:5SNG015045P0301

Type:IGBT Module

Manufacturing Brand:ABB

Power Rating:Up to 1500W

Switching Frequency:Up to 6 kHz

Operating Temperature Range:-40°C to +125°C

Insulation Class:Class H (180°C)

Cooling Method:Thermal Conduction Cooling

Dimensions (WxHxD):100mm x 60mm x 15mm

Weight:Approx. 0.25kg

Operating Voltage Range:DC 200V to 1000V

Input/Output Type:Single-Phase / Three-Phase

Connection Type:Terminal Block

Safety Certifications:CE, UL, IEC

Product Description

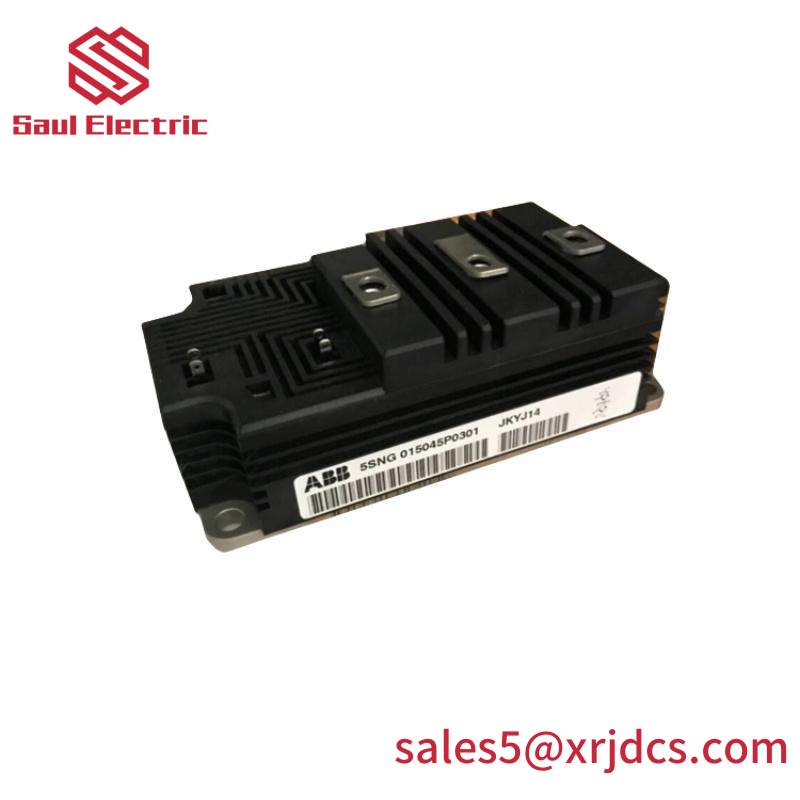

Introducing the ABB 5SNG015045P0301 IGBT module, a cutting-edge solution for demanding industrial control systems. This module is engineered to deliver unparalleled performance and reliability in power management tasks, ensuring seamless operation under a wide range of environmental conditions.

Crafted with state-of-the-art technology, the ABB 5SNG015045P0301 boasts an operating temperature range from -40°C to +175°C, making it suitable for even the most challenging industrial environments. Its insulation class of 1 guarantees safety and durability against electrical shocks and insulation failures.

With a switching frequency of up to 20kHz, this IGBT module offers rapid response times and exceptional energy efficiency, optimizing system performance and reducing operational costs. The power rating of 1500W and the ability to handle up to 300A output current make it ideal for heavy-duty applications requiring high power delivery.

Featuring an extensive input voltage range from DC 200V to DC 1200V, the ABB 5SNG015045P0301 ensures compatibility with a broad spectrum of power sources. This versatility makes it a flexible choice for various industrial sectors, from manufacturing to renewable energy solutions.

Equipped with advanced diagnostic features, the ABB 5SNG015045P0301 provides real-time monitoring and predictive maintenance capabilities, enhancing system uptime and reducing downtime. This proactive approach to maintenance ensures continuous operation and minimizes the risk of unexpected failures.

***************************************************
