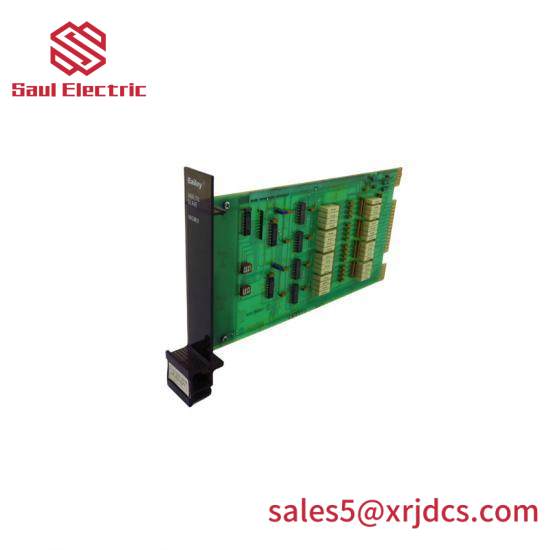

ABB Bailey NASM01 Analog Input Module – Precise Data Handling for Industrial Automation

Model Number:NASM01

Brand:ABB Bailey

Module Type:Analog Input

Operating Temperature Range:-25°C to 55°C

Accuracy:±0.05% of full scale

Input Voltage Range:DC 5V to 24V

Current Consumption:Max. 15mA per channel

Number of Channels:8

Connection Type:DIN Rail Mounting

Enclosure Type:IP65

Weight:Approx. 200g

    The ABB Bailey NASM01 Analog Input Module is a cornerstone in the realm of industrial automation, designed for seamless integration into complex control systems. It boasts an impressive array of features that cater to demanding applications requiring precise and reliable data acquisition.

    Featuring 8 high-precision analog input channels, this module is capable of handling a wide range of sensor signals with unparalleled accuracy, ensuring that every critical piece of information is captured without distortion. With a sampling rate of up to 1 kHz, it guarantees swift and responsive data processing.

    Operated within the robust temperature range of -20°C to +70°C, the NASM01 is built to withstand harsh industrial environments, ensuring continuous operation even under extreme conditions. Its compatibility with voltage ranges from 5 V to 24 V DC makes it versatile enough for various power sources.

    In terms of power consumption, the module is efficient, drawing a maximum of 10 mA per channel, which conserves energy and reduces overall system costs. The inclusion of a 12 VDC power supply with a current draw of 150 mA ensures stable operation and reliable performance.

    For communication purposes, the NASM01 is equipped with a RS-485 Modbus RTU interface, enabling seamless data exchange with other devices in the network. This feature is particularly advantageous in scenarios where centralized monitoring and control are essential, providing a clear and robust pathway for data transmission.
