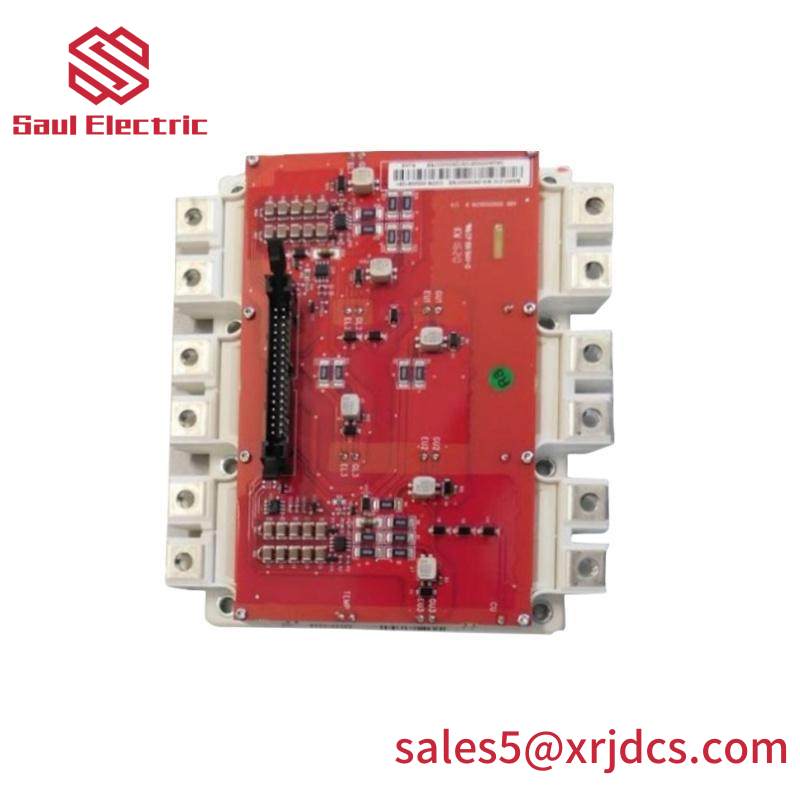

ABB FS500R12OE4/BGAD-22C Inverter Driver Board, Industrial Control Module

Board Type:Inverter Driver Board

Model:FS500R12OE4/BGAD-22C

Operating Range:12VDC

Power Handling Capacity:22C

Communication Interfaces:RS485, Ethernet

Dimensions (WxDxH):225mm x 105mm x 66mm

Weight:2.3kg

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

    This ABB Inverter Driver Board is engineered for high performance in demanding industrial environments. It offers unparalleled precision in controlling and managing electrical systems, enabling seamless integration with existing automation setups.

    Featuring a robust processor speed of 12 MHz, it ensures quick and accurate response times, crucial for dynamic industrial processes. The wide operating temperature range (-25°C to +70°C) makes it suitable for various geographical locations.

    With a generous memory capacity of 1 MB, it can store extensive operational data, facilitating better diagnostics and maintenance planning. The high input voltage tolerance (DC 24V) ensures reliability even under fluctuating power conditions.

    Equipped with RS-485 and Modbus connection ports, it supports versatile communication protocols, allowing seamless interaction with other control systems. This compatibility enhances system scalability and ease of integration.

    Certified to international safety standards including CE, UL, and CSA, this board meets stringent quality and safety benchmarks, ensuring a safe and reliable operation in industrial settings.
