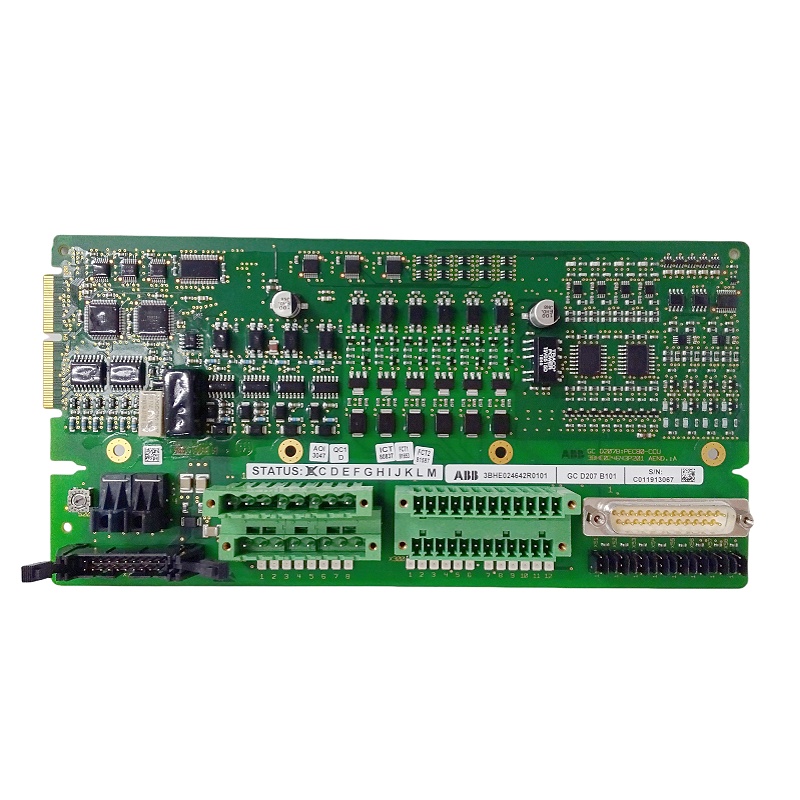

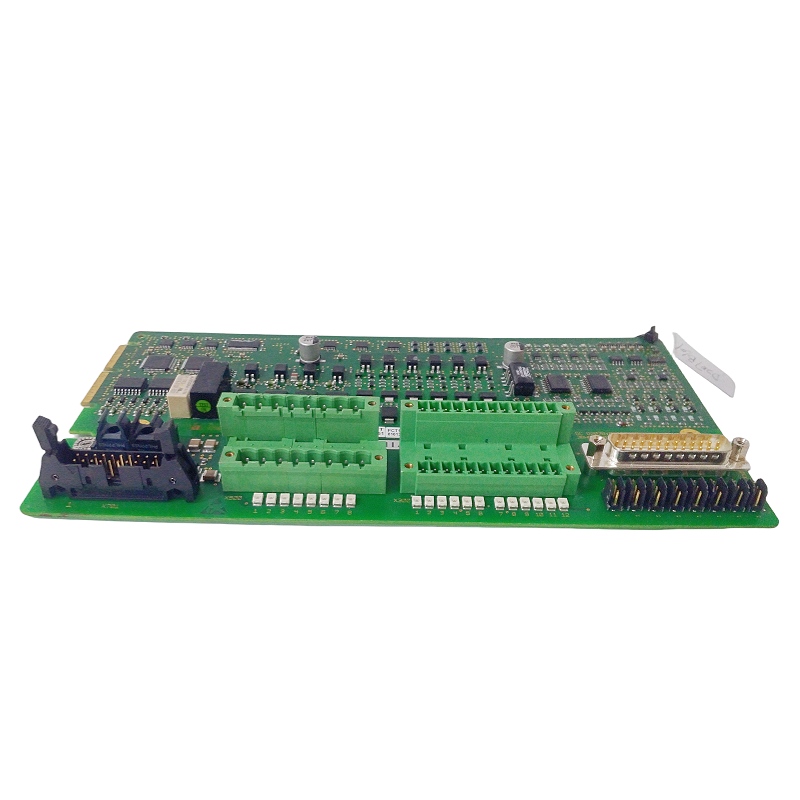

ABB GCD207B101 Gate Commutated Thyristor

ABB GCD207B101

The ABB GCD207B101 is a Gate Commutated Thyristor (GCT) device, typically used in high-power electronic applications such as industrial drives, HVDC, and FACTS (Flexible AC Transmission Systems). Below are its key technical parameters:

GCD207B101 – Key Technical Specifications:

1. Device Type:

Gate-Commutated Thyristor (GCT) (similar to IGCT – Integrated Gate-Commutated Thyristor).

2. Voltage Ratings:

Maximum Repetitive Blocking Voltage (V₃RM): 4500 V
Maximum Reverse Voltage (V₃RRM): 4500 V

3. Current Ratings:

Average On-State Current (I₃TAV): 207 A (at specified cooling conditions)
Peak Surge Current (I₃TSM): Up to 10 kA (non-repetitive)

4. Switching Characteristics:

Turn-On Time (tₐn): < 3 µs
Turn-Off Time (tₐff): < 6 µs
Commutated di/dt: High (suitable for fast switching)

5. Thermal & Mechanical Properties:

Junction Temperature Range (Tⱼ): -40°C to +125°C
Cooling Method: Press-pack (requires external clamping force for cooling)

6. Gate Drive Requirements:

Gate Trigger Voltage: ~15-20 V (typical for GCTs)
Gate Current (Peak): ~100 A (for fast turn-on)

7. Applications:

High-power converters (e.g., PCS6000 series)
Medium-voltage drives (MVD)
HVDC transmission
STATCOM and other FACTS devices
