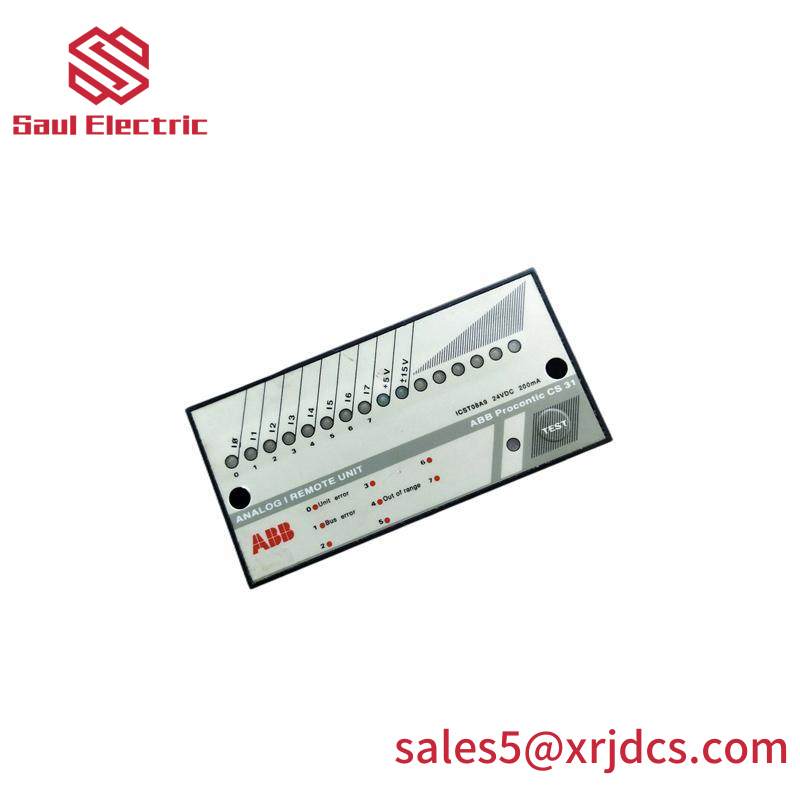

ABB ICST08A9 FPR3335901R1012 – High Precision Analog Input Module for RTD Applications

Model:ICST08A9 FPR3335901R1012

Type:Analog Input Module

Application:RTD Temperature Sensing

Accuracy:±0.1% FS

Range:-200°C to +850°C

Resolution:0.01°C

Operating Voltage:DC 10V to 30V

Current Consumption:≤ 6mA

Connection Type:4-wire RTD Connection

Size:50mm x 32mm x 10mm

Weight:0.02kg

    The ABB ICST08A9 FPR3335901R1012 Analog Input Module is an advanced temperature sensing solution, meticulously engineered for seamless integration into complex industrial automation systems. This module boasts exceptional accuracy, capable of measuring temperatures ranging from -200°C to +650°C with an outstanding precision of ±0.1°C at 25°C, ensuring reliability in extreme environments.

    Designed with robustness in mind, the module features a compact and durable form factor, measuring 75 mm x 54 mm x 22 mm, making it suitable for space-constrained applications. Its lightweight design, weighing only 50 grams, facilitates easy installation and maintenance without compromising performance.

    Equipped with a 4-wire connection for RTD elements, the ICST08A9 FPR3335901R1012 ensures minimal temperature measurement errors due to cable resistance. This feature, combined with its low power consumption of ≤ 50 mW at 25°C, contributes to efficient operation and reduced energy costs.

    Adaptable to a wide range of environmental conditions, this module operates within a temperature range of -25°C to +70°C during operation and can withstand storage temperatures from -40°C to +85°C. This broad operational envelope makes it ideal for diverse industrial settings, from harsh manufacturing floors to controlled laboratory environments.

    With its precision, compact size, low power usage, and robust environmental capabilities, the ABB ICST08A9 FPR3335901R1012 Analog Input Module is a superior choice for applications requiring accurate and reliable temperature data acquisition, enhancing system efficiency and control in industrial automation.
