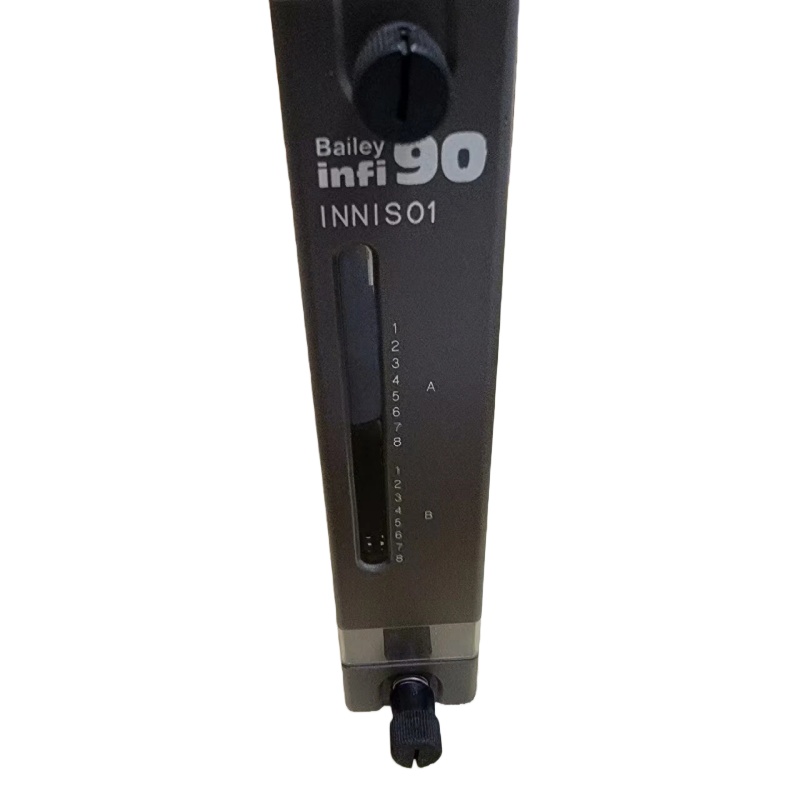

ABB INNIS01 is a Network Interface Slave Module (NIS) designed for communication between the field level (Level 1) and the control level (Level 2) in ABB industrial automation systems.

Core Functions and Roles

The primary role of the INNIS01 module is to bridge or extend communication between field networks and control networks. Its key functions include:

Protocol Conversion and Interface Adaptation

• Support for multiple communication protocols:
  The module can convert field-level fieldbus protocols (such as IEC 61850, PROFIBUS, Modbus, etc.) into Ethernet-based protocols (e.g. TCP/IP) commonly used by supervisory or control systems. This enables seamless communication between field devices and higher-level systems such as DCS or PLC.
• Network bridging:
  INNIS01 connects the field network (C Network) and the control network (I Network), supporting bidirectional data transmission to ensure that field device data can be accessed, monitored, and controlled by host systems.

Network Expansion and Redundancy

• Extended network coverage:
  In industrial environments, a single controller (such as AC800M) may not be able to directly cover all field devices. INNIS01 can function as a network node within a field network branch, extending the overall communication coverage.
• Redundancy support:
  For systems with high availability requirements, INNIS01 supports hardware redundancy. It is typically installed in pairs (e.g. dual-module configuration). If one module fails, the other automatically takes over, ensuring uninterrupted communication.

Technical Specifications (Reference)

According to information from various sources, typical technical specifications of the INNIS01 include (actual specifications should be confirmed with official procurement documents):

• Power supply: +5 V and +15 V DC, with power consumption of approximately 10.0 VA
• Interface types: Typically equipped with RJ45 Ethernet ports and fieldbus interfaces (such as 9-pin M12 connectors)
• Communication protocols: Supports industrial protocols such as EtherNet/IP, Modbus TCP, PROFINET, Ethernet/IP
• Operating temperature: Suitable for industrial environments, typically –25°C to +70°C

Typical Applications

• Distributed Control Systems in large plants:
  In large-scale chemical, petrochemical, steel, and similar industries, field devices are distributed over wide areas. INNIS01 acts as a critical bridge to collect field data and transmit it to a centralized control room for monitoring and control.
• Field-level communication in DCS systems:
  In ABB DCS platforms such as System 800xA, INNIS01 is commonly used to connect the Field Level and the Control Level, enabling real-time transmission of field data.
• Field network expansion and upgrades:
  When existing network capacity is insufficient or new field devices need to be added, INNIS01 modules can be installed to expand network nodes and communication capacity.
