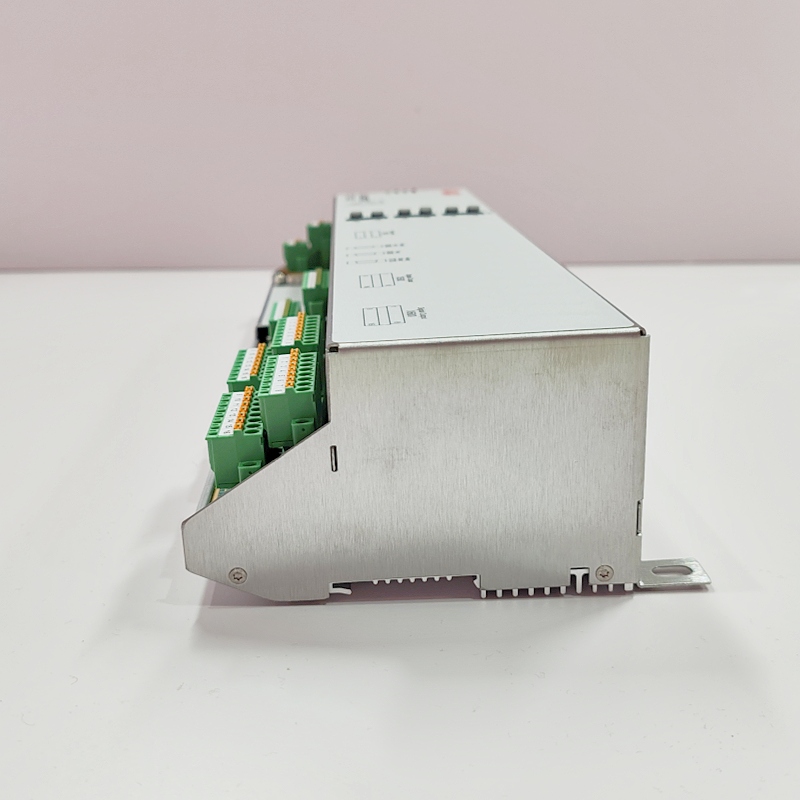

ABB PCD235C101 3BHE057901R0101 protection module

ABB PCD235C101 3BHE057901R0101

The ABB PCD235C101 3BHE057901R0101 is a protection and control IED (Intelligent Electronic Device) from ABB’s Relion® 670 series, specifically designed for power system protection, automation, and control in substations.

General Specifications:

Model: PCD235C101
Order Code / Article Number: 3BHE057901R0101
Series: Relion® 670 (part of ABB’s 670 IED family)
Device Type: Line Differential Protection & Control IED

Key Functions:

Line Differential Protection (87L) – High-speed protection for transmission lines
Distance Protection (21) – Zone-based fault detection
Overcurrent Protection (50/51, 50N/51N) – Phase & earth fault protection
Auto-Reclosing (79) – For transient fault recovery
Synchrocheck (25) – Ensures safe reclosing
Communication-Assisted Protection (e.g., IEC 61850, GOOSE, Sampled Values)

Communication & Protocols:

Ethernet Ports: 2 or more (for IEC 61850-8-1 GOOSE & MMS)
Supported Protocols:
- IEC 61850 (Edition 1 & 2)
- IEC 60870-5-103/104 (for SCADA integration)
- DNP3 (common in North America)
- Modbus RTU/TCP
Hardware Interfaces:
- Fiber optic (for differential protection channels)
- RS-485 (for legacy comms)

Electrical & Environmental Specs:

Power Supply:
- 48-250V DC or 100-240V AC (depending on variant)
Power Consumption: Typically 10-20W
Operating Temperature: -25°C to +70°C (industrial-grade)
Humidity: 5% to 95% (non-condensing)

Mechanical & Installation:

Mounting: 19″ rack-mountable (standard substation panel)
Dimensions: ~177mm (H) × 482mm (W) × 230mm (D) (4U height)
Weight: ~5-7 kg

Typical Applications:

Transmission line protection (HV/EHV)
Substation automation (SA)
Smart grid applications (IEC 61850 compliant)

Main Brand:

ABB Allen-Bradley Alstom Bently Emerson Foxboro

GE MOOG Schneider Woodward HIMA Honeywell

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

More models//Quality assurance//Price advantage//In stock

ABB 5SHY series hot selling//large inventory//brand new//affordable price

5SHY4045L0006 3BHB030310R0001

5SHY3545L0010 3BHB013088R0001 3BHE009681R0101 GVC750BE101

5SHY3545L0009 3BHB013085R0001 3BHE009681R0101 GVC750BE101

5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101

5SHY3545L0009

5SHY3545L0003

5SHY35L4503 3BHB004693R0001 3BHB004692R0002 5SXE01-0127

5SHY35L4510

5SHY35L4520 5SXE10-0181 AC10272001R0101

5SHY5045L0020
