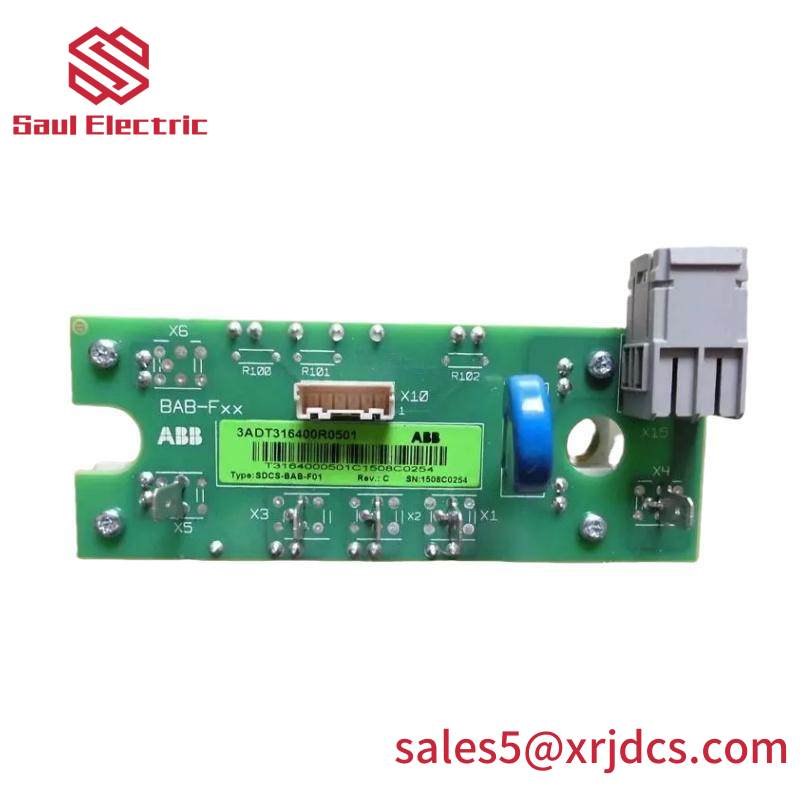

ABB SDCS-BAB-F01 | 3ADT316400R0501 | Excitation Module

Manufacturer:ABB

Model Number:SDCS-BAB-F01 3ADT316400R0501

Module Type:Excitation

Operating Voltage:220V

Frequency Response:Up to 400 Hz

Control Accuracy:+/- 0.5%

Load Current Capacity:30 A

Operating Temperature:-20°C to +60°C

Protection Class:IP20

Dimensions (WxHxD):170mm x 80mm x 150mm

Weight:0.6kg

    The ABB SDCS-BAB-F01 3ADT316400R0501 Excitation Module is a key component in modern industrial drive systems, delivering unparalleled precision in controlling the excitation current. This module is specifically engineered to enhance the efficiency and reliability of AC synchronous motors.

    With its robust design and high accuracy, this module ensures smooth operation under varying environmental conditions, making it suitable for use in a multitude of industrial settings. Its compatibility with Profinet communication protocol facilitates seamless integration with other ABB automation products, streamlining system setup and maintenance.

    Featuring an IP20 protection class, the module is designed to withstand dust and minor splashes, enhancing its durability and reducing maintenance requirements. Its wide operating temperature range from -20°C to +60°C ensures it can function effectively in diverse environments.

    This excitation module supports a versatile input signal type, allowing for flexible configuration and integration within different automation systems. The ability to provide a precise 0-20 mA output current ensures that the motor operates at peak efficiency, minimizing energy consumption and maximizing productivity.

    Designed with ease-of-use in mind, the ABB SDCS-BAB-F01 3ADT316400R0501 Excitation Module simplifies the process of setting up and managing drive systems. It offers a user-friendly interface for calibration and diagnostics, enabling quick troubleshooting and optimization of system performance.
