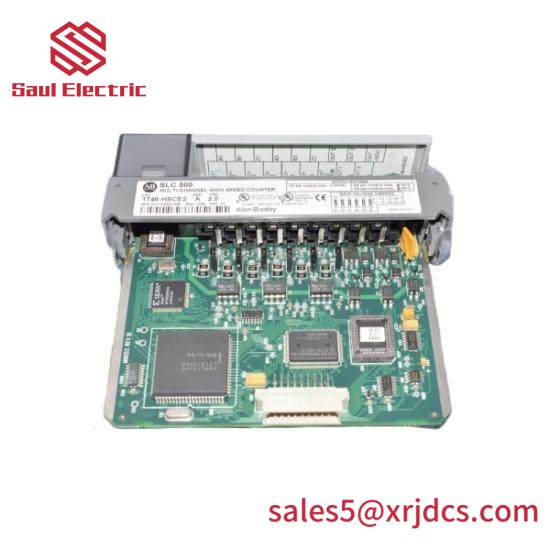

Allen Bradley 1746-HSCE2 | Multi Channel High Speed Counter – Advanced Industrial Control Solution

Number of Channels:16

Counter Type:High-speed

Sampling Rate:Up to 65,535 counts per second

Input Voltage Range:DC 24V

Operating Temperature:-40°C to +70°C

Power Consumption:Less than 15mA

Communication Interface:RS-485 Modbus-RTU

    The 1746-HSCE2 is designed to deliver unparalleled accuracy and reliability in high-speed event counting applications. Its robust digital input interface ensures precise detection of events at frequencies up to 1 MHz, making it ideal for use in complex industrial control systems where timing precision is critical.

    With a resolution of just 1 μs, this counter can measure time intervals with incredible detail, enabling detailed analysis and control of processes that require high temporal resolution. The device supports up to four independent channels, each capable of operating at full speed or being shared among multiple channels, providing flexibility for various application scenarios.

    The device is equipped with a Modbus communication interface, facilitating seamless integration with a wide range of PLCs, DCS systems, and other industrial automation equipment. This ensures easy setup and operation within existing industrial networks.

    Operated from a standard 24V DC supply, the 1746-HSCE2 is designed for industrial environments, ensuring reliable performance under a variety of conditions. It operates within a temperature range of -10°C to 55°C during operation and can be stored safely between -40°C to 85°C, making it suitable for deployment in diverse industrial settings.

    Compact yet robust, the 1746-HSCE2 consumes a maximum of 1.5W of power, ensuring efficient energy usage without compromising on performance. Its lightweight design facilitates easy installation and maintenance in industrial setups, further enhancing its utility and convenience.
