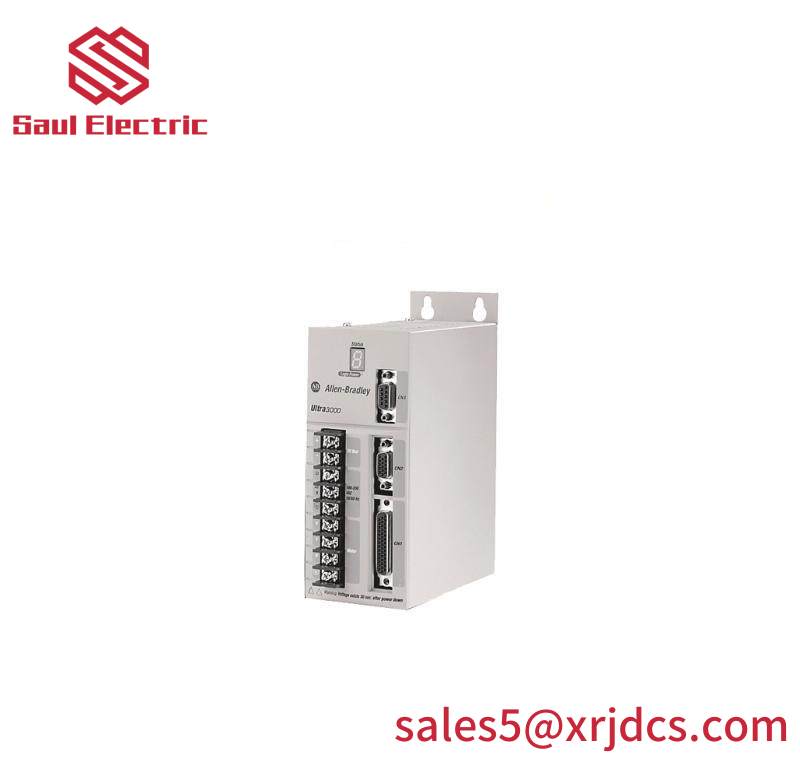

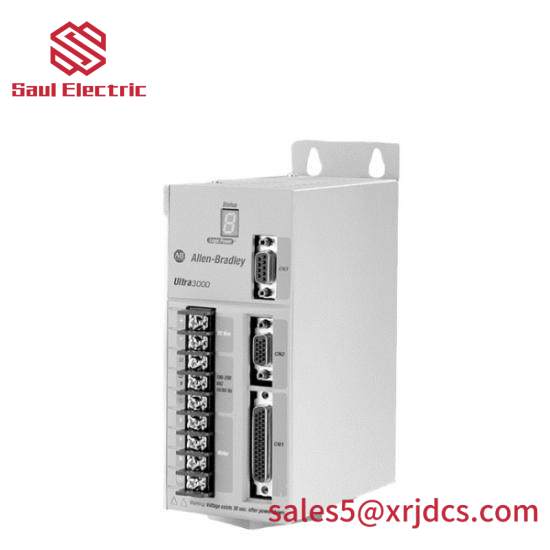

Allen-Bradley 2098-DSD-020X Ultra 3000 Digital Servo Drive

Current (AC):18 Amps RMS

Input Frequency (AC):47-63 Hz

Input Voltage (AC):120 – 240 VAC RMS, 1-Phase

Output Voltage:100-240VAC

Output Frequency Range:0-400 Hz

Continuous Output Power:1kW

Continuous Output Current:1A

Intermittent Output Current:30A (0-peak)

Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)

Weight:N/A

Operating Temperature:0-55 °C (32-131 °F)

Storage Temperature:-40-70 °C (-40-158 °F)

Relative Humidity:5-95% without condensation

Operating Shock:15 g (3 pulses, 11 ms)

Nonoperating Shock:30 g (3 pulses, 11 ms)

    The Allen-Bradley 2098-DSD-020X is a robust and reliable digital servo drive that simplifies complex motion control tasks. Designed for use in industrial environments, this drive seamlessly interfaces with servo motors to deliver precise positioning and motion control.

    With an input voltage range of 100-240VAC and a nominal input current of 18 amps, the 2098-DSD-020X supports a wide variety of industrial applications. Its versatile design makes it suitable for both simple indexing and multi-axis motion control, ensuring flexibility and adaptability in various setups.

    The drive’s dimensions of 7.8 x 5.68 x 3.89 inches make it compact and space-efficient, allowing for easy integration into existing systems. Additionally, its robust construction ensures reliable operation in harsh industrial conditions, with a wide operating temperature range of 0-55 °C and high shock resistance.

    To further enhance its utility, the 2098-DSD-020X includes advanced features like auxiliary power supply support and feedback position data processing capabilities. These features enable seamless communication with external devices and precise motor control.

    Overall, the Allen-Bradley 2098-DSD-020X is an ideal solution for engineers and manufacturers looking for a reliable, high-performance digital servo drive that delivers exceptional accuracy and reliability in demanding industrial settings.
