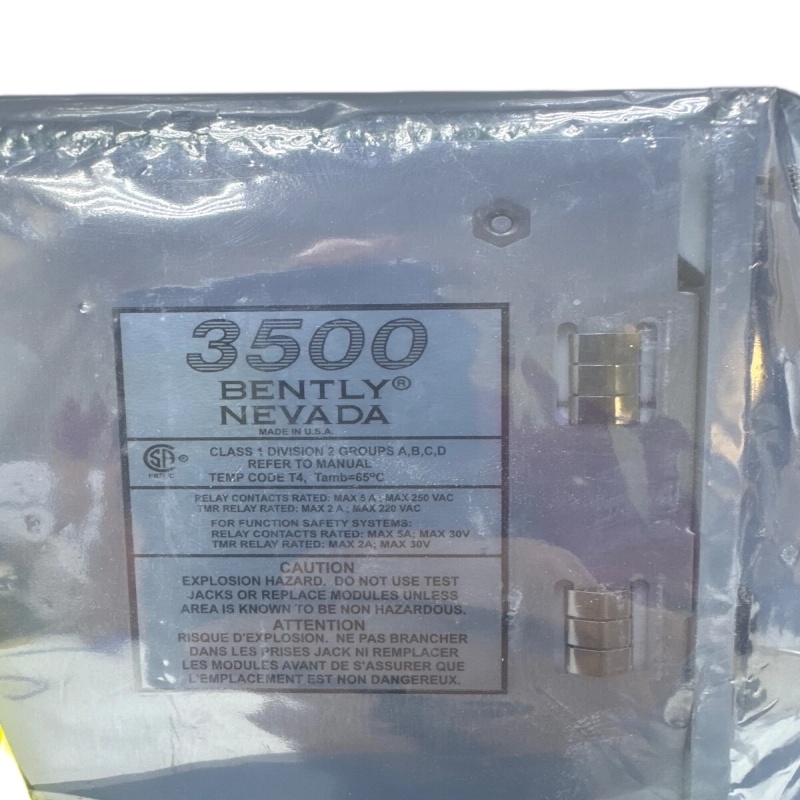

Bently Nevada 3500/22M 138607-01

Transient Data Interface (TDI) Module for 3500 Monitoring System

Product Overview

The Bently Nevada 3500/22M 138607-01 is a high-performance Transient Data Interface (TDI) Module designed for the 3500 Machinery Protection System. It serves as the primary communication gateway between the 3500 rack and external monitoring software such as System 1.

This module combines the functionality of a Rack Interface Module (RIM) with advanced data acquisition capabilities, enabling real-time transmission of both steady-state and transient data for critical rotating machinery.

Key Features

Integrated Rack Interface & Data Acquisition in one module
High-speed Ethernet communication (up to 100 Mbps)
Supports transient waveform and static data collection
Compatible with all major 3500 series monitoring modules
Enables predictive maintenance and condition monitoring
Supports Modbus and proprietary communication protocols
Hot-swappable design for easy maintenance

Technical Specifications

Parameter	Details
Model Number	3500/22M 138607-01
Product Type	Transient Data Interface (TDI) Module
Power Supply	24 VDC
Power Consumption	Approx. 10 W
Communication	Ethernet, Serial
Data Transfer Rate	Up to 100 Mbps
Operating Temperature	-30°C to +65°C
Installation	3500 Rack System

Functions

The 3500/22M TDI Module plays a central role in the system by:
Acting as the main interface between hardware and software
Collecting and transmitting vibration, position, and waveform data
Supporting real-time monitoring and diagnostics
Enabling advanced fault detection and analysis

Applications

Oil & Gas Industry (compressors, turbines, pumps)
Power Generation Plants
Petrochemical Facilities
Heavy Industrial Machinery Monitoring

Advantages

Improves equipment reliability and uptime
Supports early fault detection
Enhances plant safety and efficiency
Reduces maintenance costs through predictive analytics
