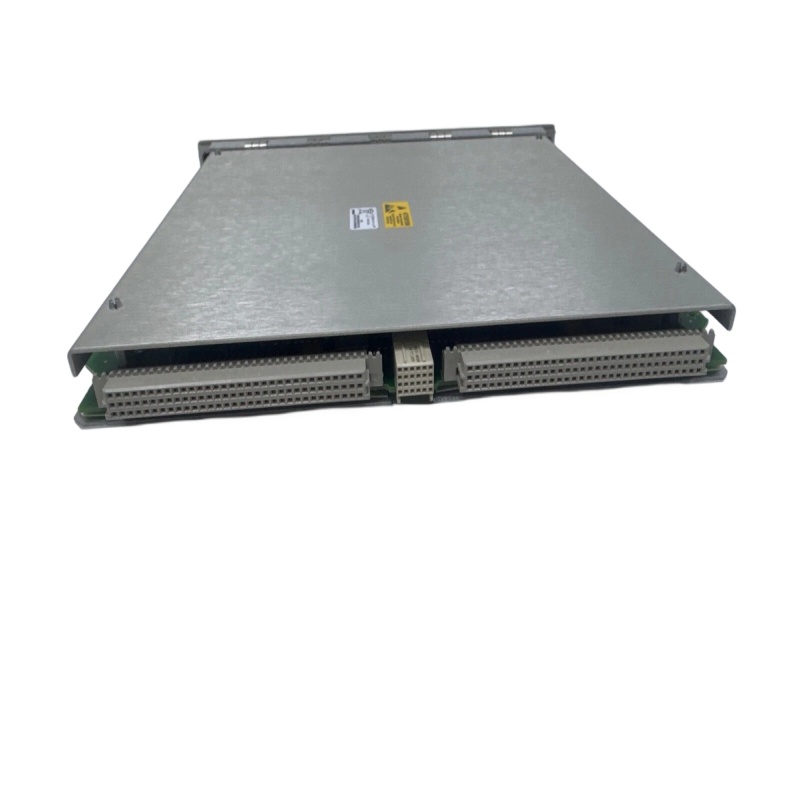

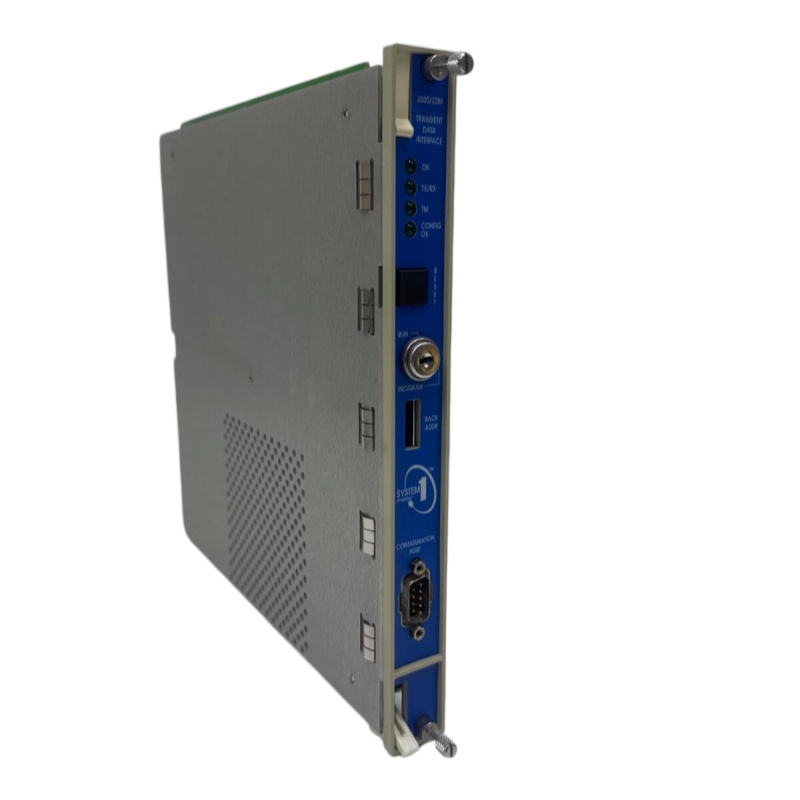

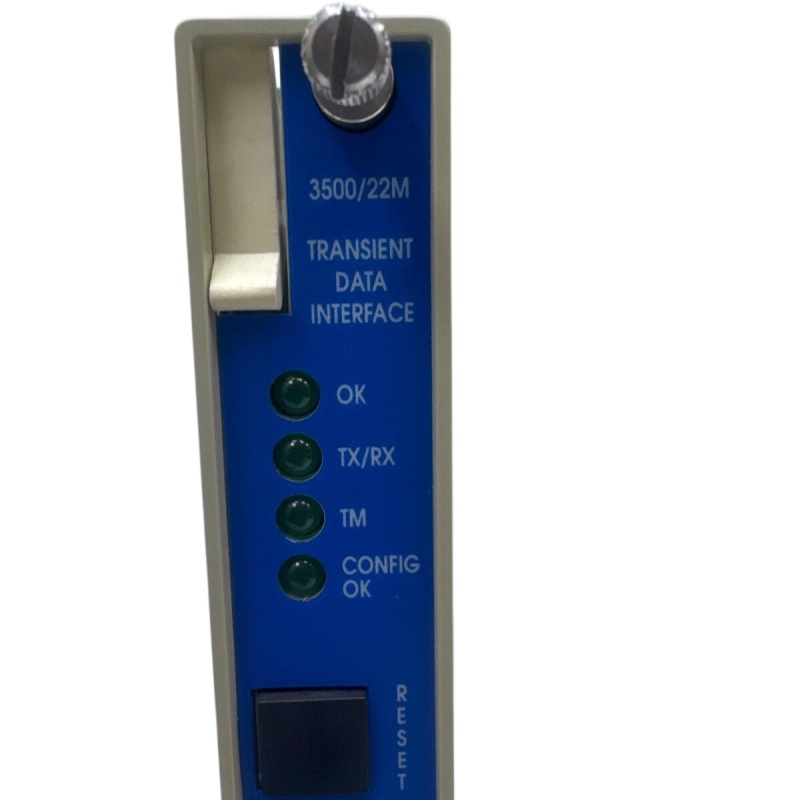

Bently Nevada 3500/22M 138607-01AA (05L00S4L)

Transient Data Interface (TDI) Module – Overview

? Product Identification

• Brand: Bently Nevada
• Series: 3500 Machinery Protection System
• Model: 3500/22M
• Part Number: 138607-01AA
• Configuration Code: 05L00S4L
• Type: Standard Transient Data Interface (TDI) Module

? Product Description

The 3500/22M 138607-01AA TDI module is the core communication and data acquisition interface within the Bently Nevada 3500 monitoring system. It acts as the bridge between field monitoring modules and software platforms such as System 1, enabling real-time machinery condition monitoring and diagnostics.

It combines:

• Rack Interface Module (RIM) functionality
• High-speed data collection capability
• Communication processor integration

This makes it an essential component in any 3500 rack, always installed in Slot 1 (next to the power supply).

? Key Functions

1. Data Acquisition & Transmission

• Collects steady-state and transient (dynamic waveform) data
• Transfers data to host systems via Ethernet
• Supports high-resolution event capture

2. System Interface

• Connects 3500 rack modules to:
  • Condition monitoring software
  • DCS / SCADA systems
• Acts as the central data gateway

3. Communication Capabilities

• Ethernet: 10/100Base-T (auto-sensing)
• Optional fiber optic (100Base-FX)
• Protocols:
  • Modbus
  • TCP/IP
  • Ethernet/IP

? Technical Highlights

• Power consumption: ~10.5 W
• Supports USB interface (front panel)
• Dual Ethernet / network redundancy capability
• Hot-swappable design (rack-based system)
• Operating temperature: up to ~65°C

? System Role

The TDI module is not part of the protection trip path, but it is critical for:

• Data visualization
• Diagnostics
• Historical trend analysis

Every 3500 system requires one TDI or RIM module to operate properly.

? Typical Applications

• Steam & gas turbines
• Compressors (oil & gas industry)
• Power plants
• Rotating machinery monitoring

? Summary (SEO-Friendly)

The Bently Nevada 3500/22M 138607-01AA is a high-performance transient data interface module designed for the 3500 series machinery protection system. It enables real-time data acquisition, advanced communication, and seamless integration with industrial control systems, making it a critical component for predictive maintenance and equipment reliability.
