? Bently Nevada ANA-D3510-100-A1 – Product Overview

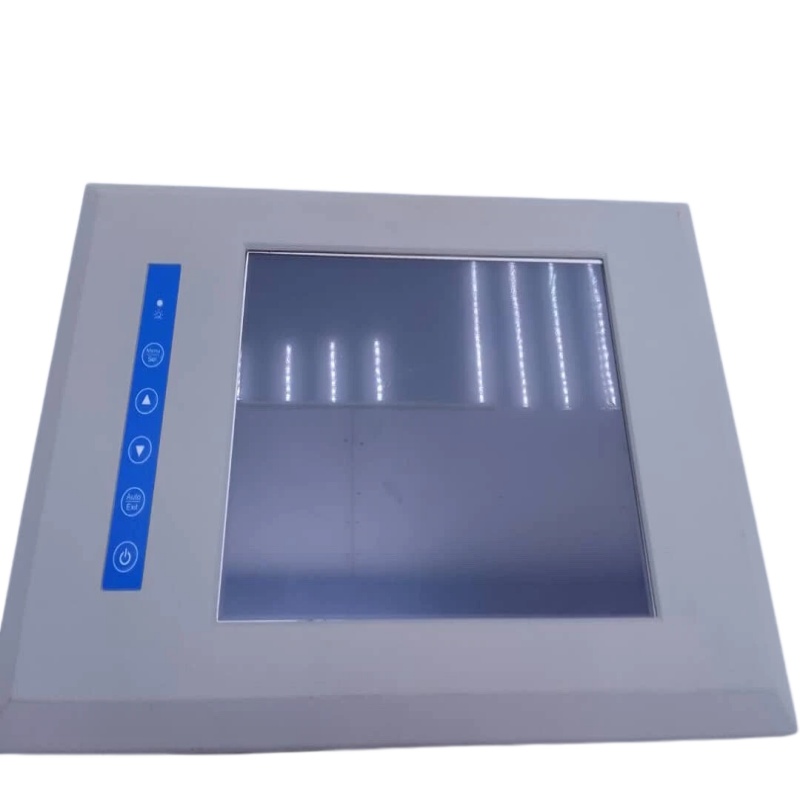

The Bently Nevada ANA-D3510-100-A1 is a 10-inch industrial touchscreen display designed for use with the Bently Nevada 3500 series machinery protection system, particularly the 3500/94M VGA Display Module.

It provides a reliable human-machine interface (HMI) for monitoring real-time machine condition data in industrial environments.

? Key Features

10-inch LCD Touchscreen Display (Advantech-based)
VGA interface for integration with 3500/94M module
Real-time data visualization, including:
- System alarms & events
- Channel and module data
- Machine status indicators (OK / Alarm / Danger)
Customizable display screens via configuration software
Industrial-grade rugged design for harsh environments

? Technical Specifications

Model: ANA-D3510-100-A1
Associated P/N: 120M8155-01
Display Size: 10-inch LCD (LED backlight)
Power Supply: 24V DC (10–28V range)
Current Consumption: < 500 mA
Operating Temperature: -20°C to +65°C
Protection Rating: IP54
Hazardous Area Certification:
- Class I, Division 2
- ATEX / IECEx approved

? System Integration

The ANA-D3510-100-A1 works as a front-end display unit for the 3500 system:

Connects to 3500/94M VGA Display Module
Displays processed data from the 3500 rack system
Can be used with Display Router Box to monitor multiple racks

? Typical Applications

Turbine monitoring systems
Oil & gas machinery protection
Power generation equipment
Industrial rotating equipment diagnostics
